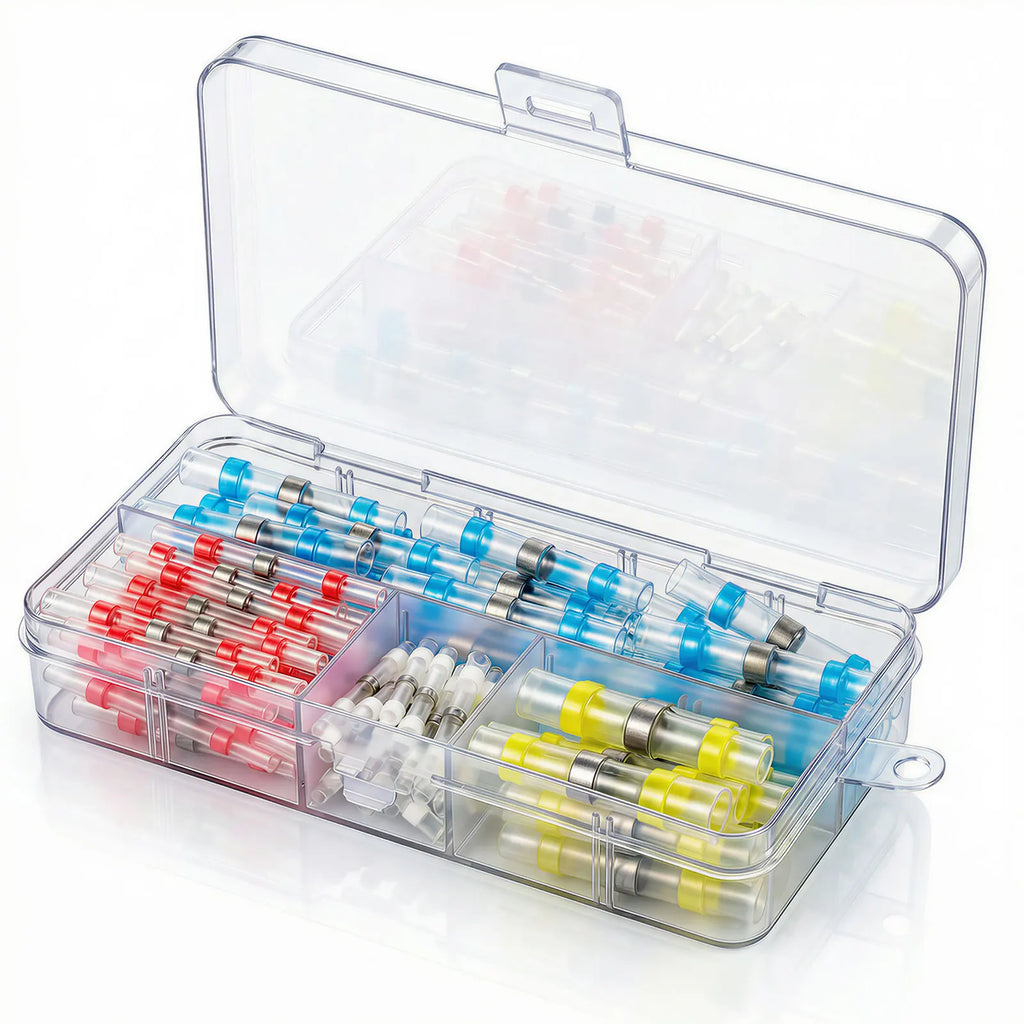

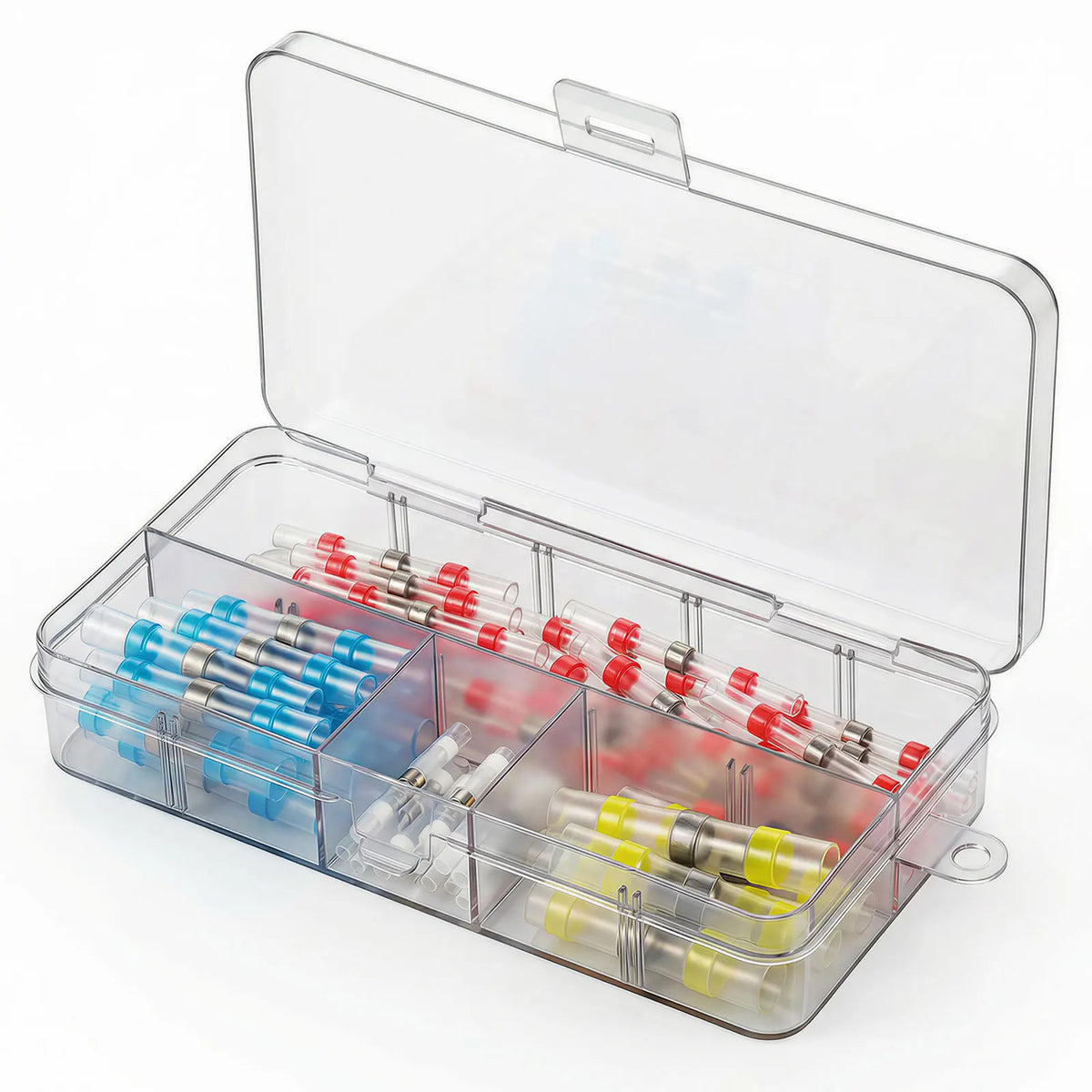

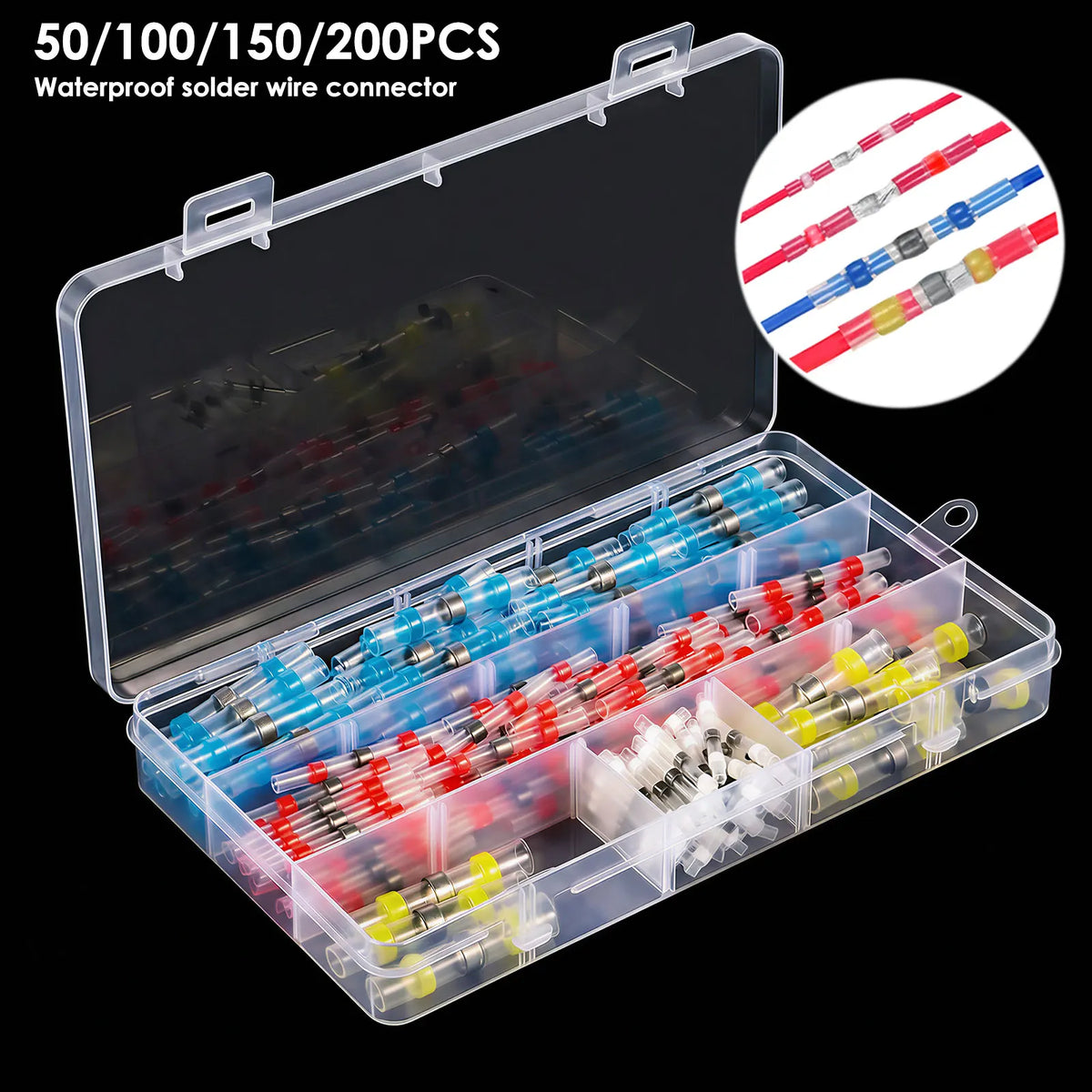

200 PCS Solder Seal Wire Butt Connectors Welding Ring Heat Shrink Terminal Waterproof Insulated Electrical Wire Terminals

Highlight description:

[Sufficient Quantity] The package includes 200 heat shrink connectors. This set is specially designed for wire soldering, mechanical protection of solder joints, and waterproof. Color-coded tubes ensure you identify and select the correct size connector.

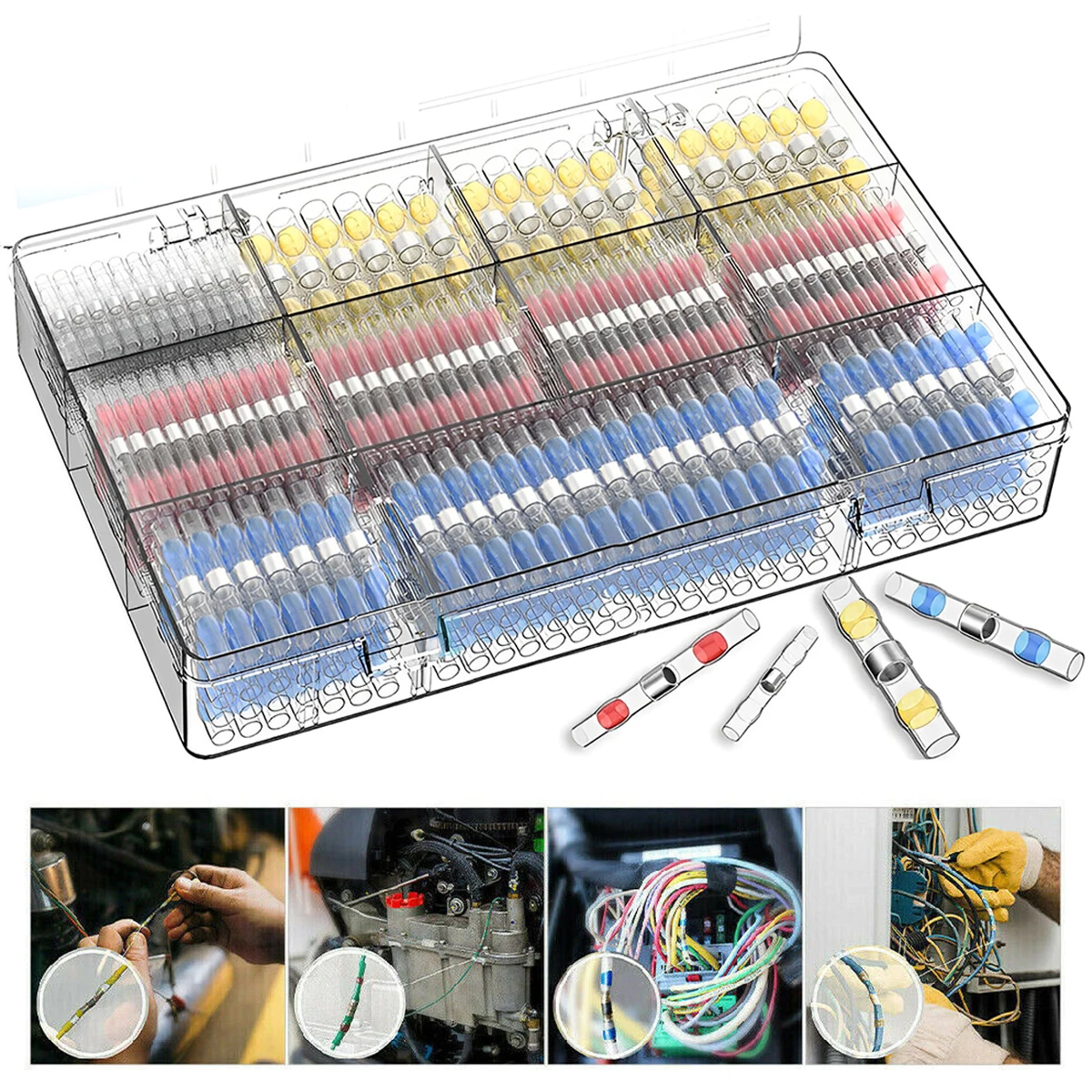

[Wide Applications] A wide variety of solder-sealed heat shrink connectors can work on your boat, vehicle, engine, power tools, home, lab, audio, science projects, electronics. Solder-sealed wire connectors with molten solder ensure a secure wire connection, increased current, and an insulated watertight connection.

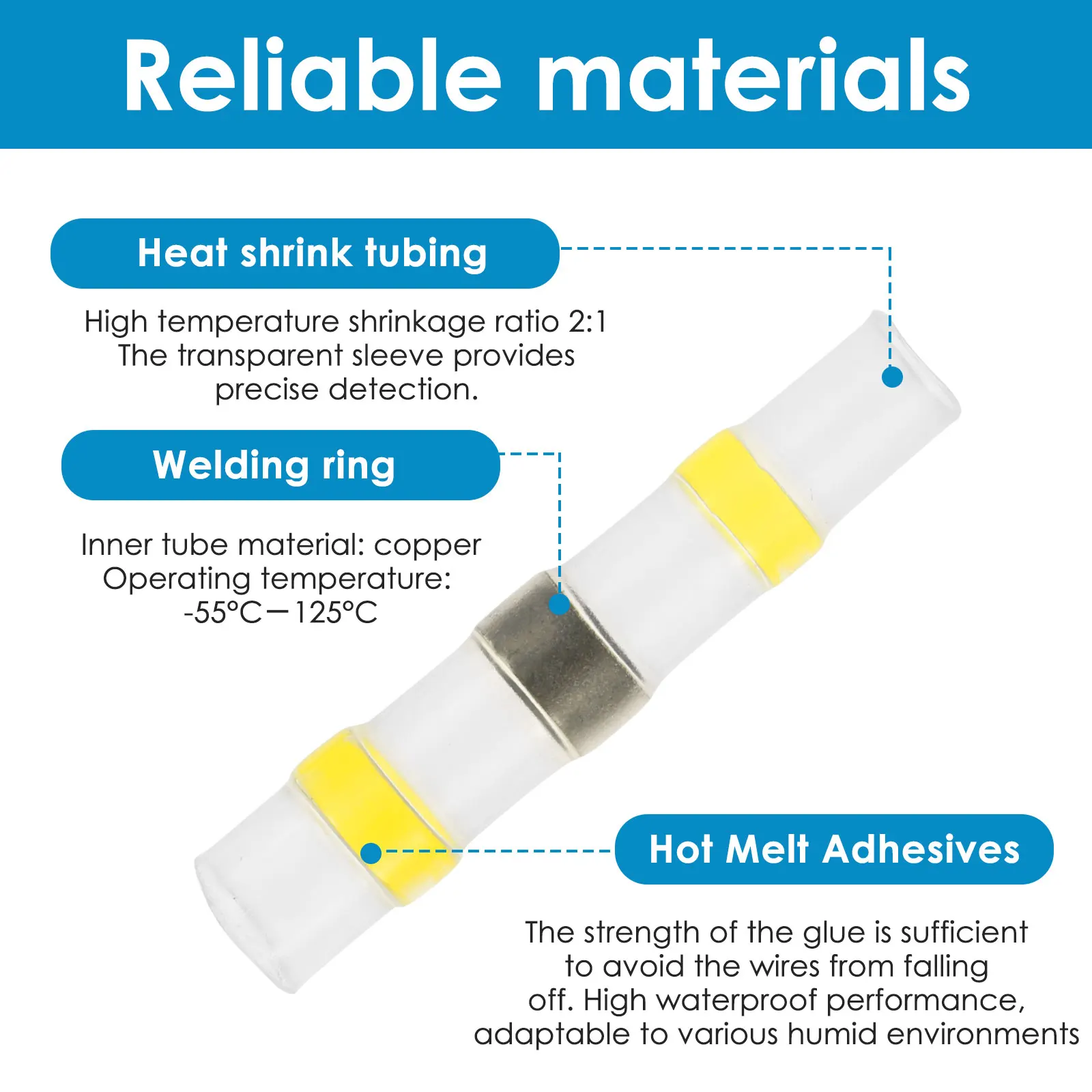

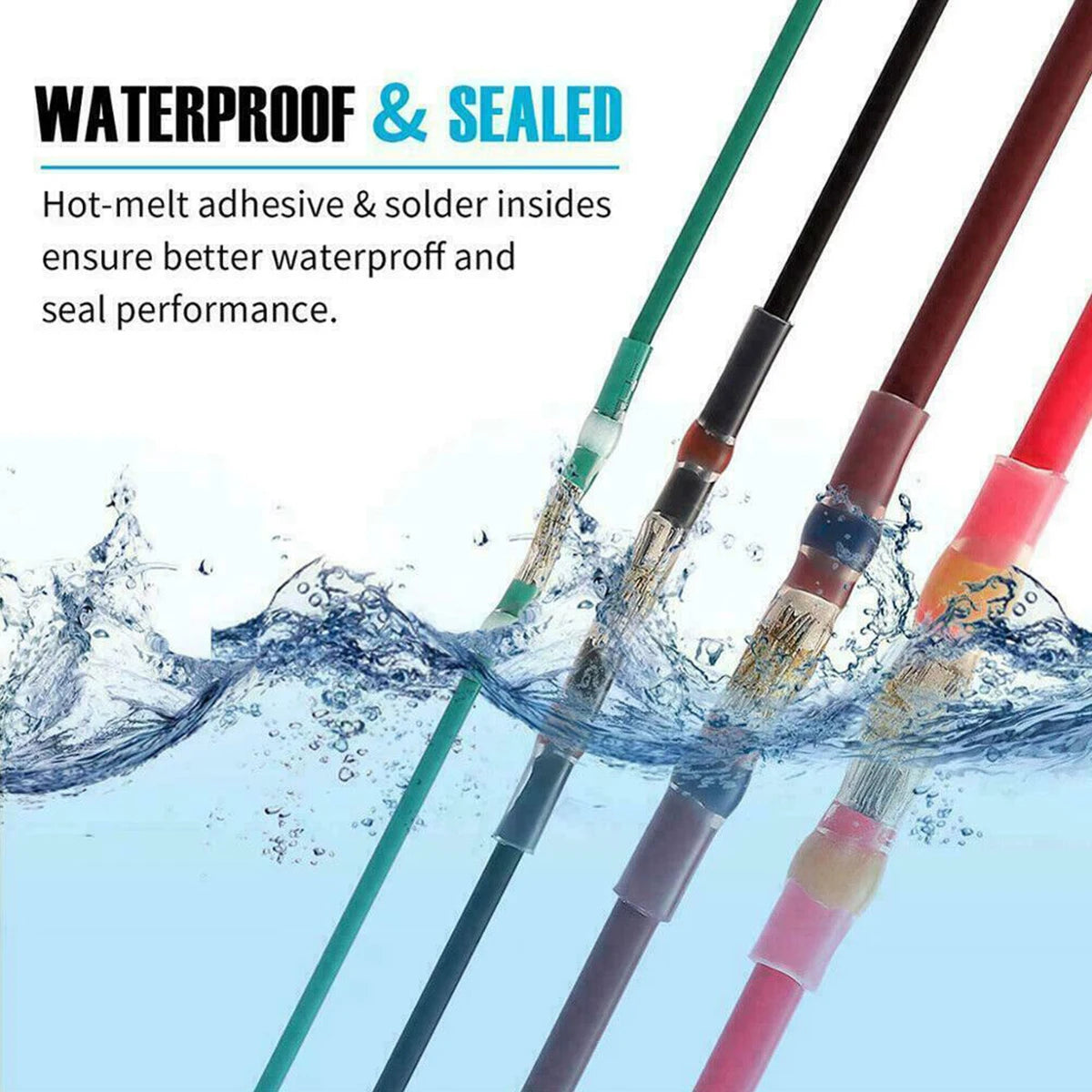

[Sealed, Waterproof and Insulated] A variety of weld-sealed heat shrink butt connectors are made of PE material, ensures a watertight seal and prevents wire broken. Using hot melt adhesive, it has waterproof function.

[Excellent Wire Contact and Ease of Use] Connector provides increased current and ensures less voltage drop, preventing wire failure and reducing tool equipment downtime. It provides a secure seal every time, and your wires won't slip out of the connector.

[After-sales] If you have any questions, please get in touch with us, our service team will provide you with a professional and satisfactory service.

Detailed description:

Product Name: Solder Seal Wire Connector

Material: PE

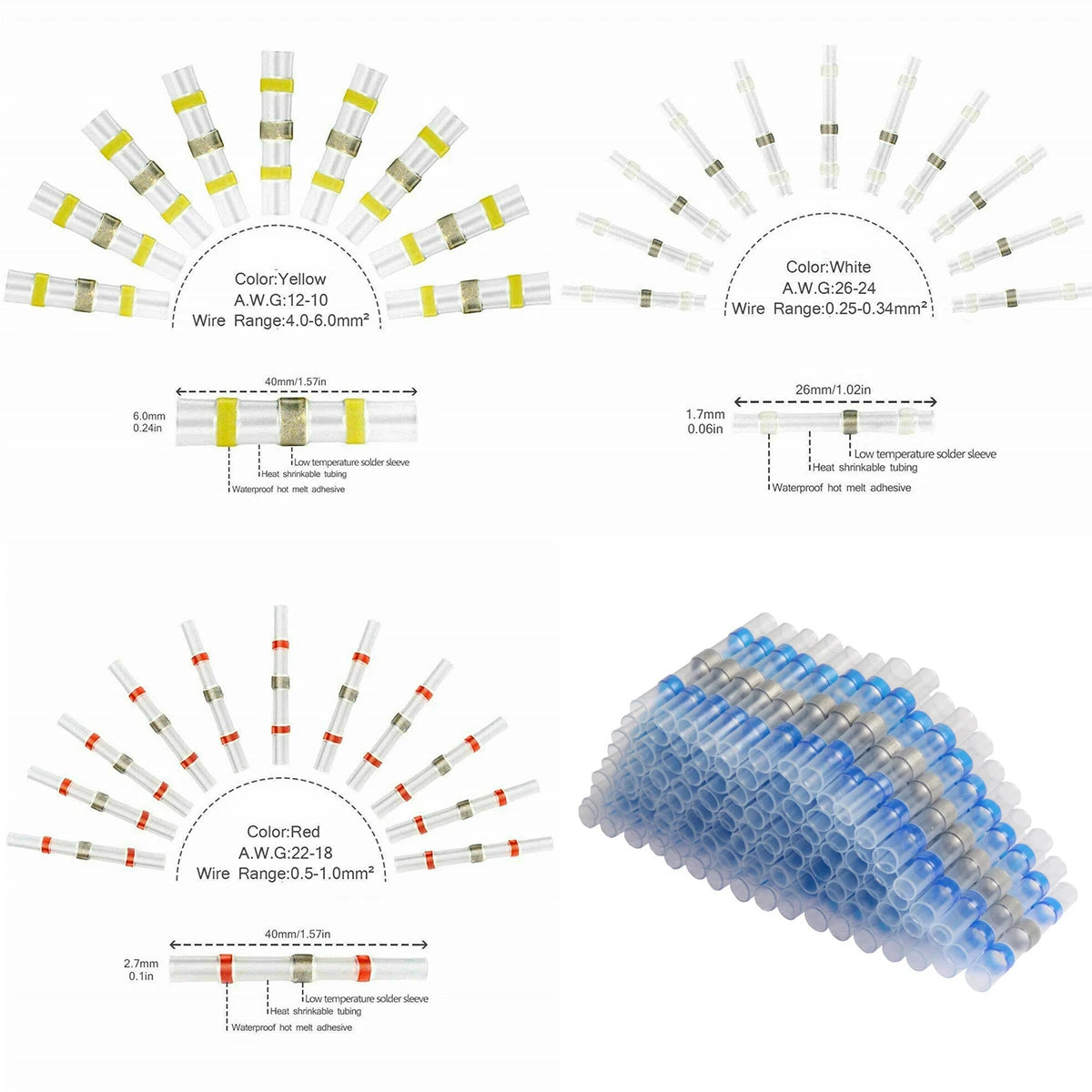

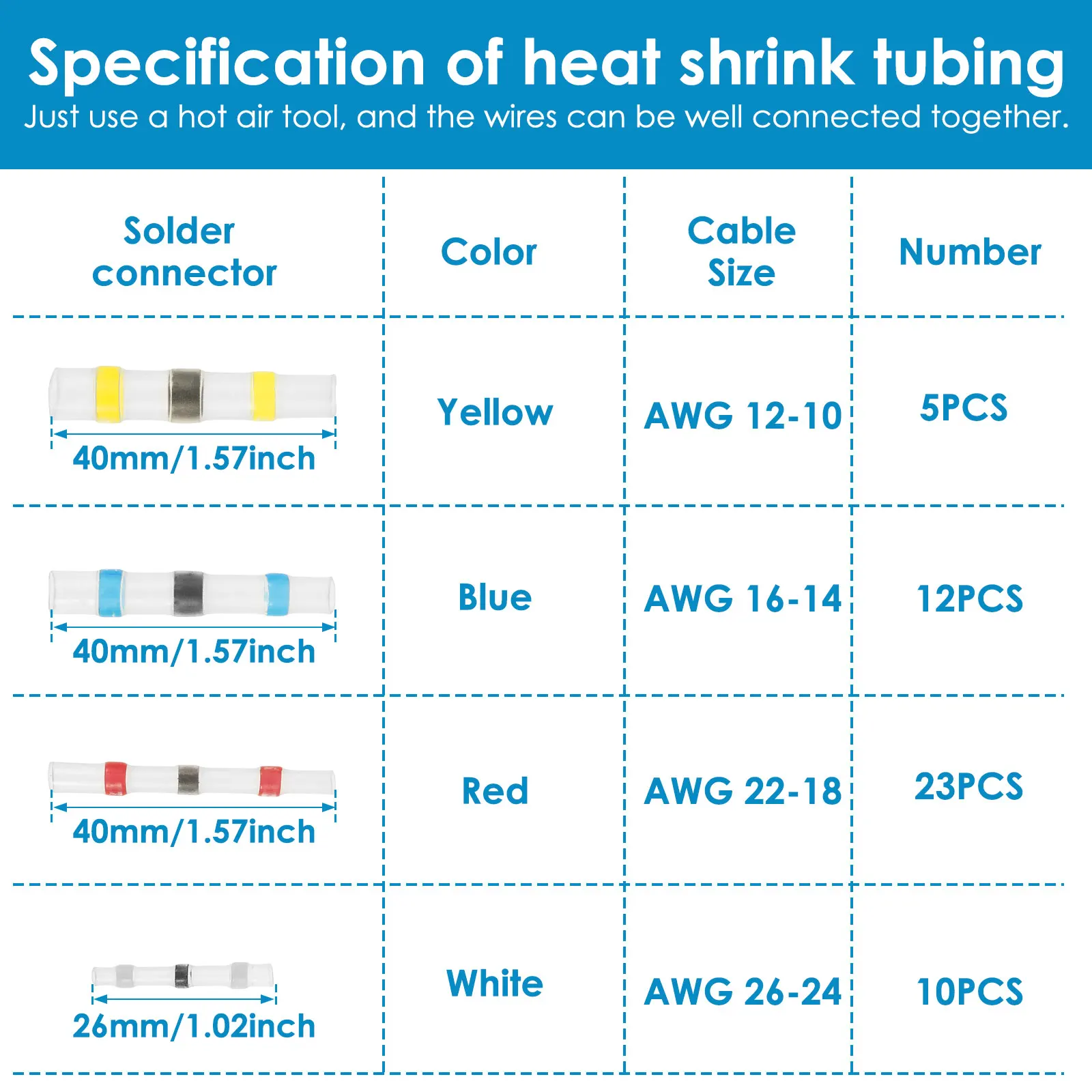

Size:

White connector: 26x2.6x1.7mm (1.02 × 0.10 × 0.07 inch)

Red connector: 40x3.6x2.7mm (1.57 × 0.14 × 0.11 inch)

Blue connector: 40x5.3x4.5mm (1.57 × 0.21 × 0.18inch)

Yellow connector: 40x6.8x6mm (1.57 × 0.27 × 0.24 inch)

Working temperature: -55 ℃~125 ℃

Initial shrinkage temperature: 80 ℃

Melting starting temperature: 138 ℃

Complete melting temperature of solder: 160 ℃

Dielectric strength: 1KV

Application: Designed for wire connection, soldering heat shrink protection and waterproofing.

Red Connector: Tool Cable/Wire Size 22-18 AWG 0.5-1.0mm²

Blue Connector: Tool Cable/Wire Size 16-14 AWG 1.5-2.5mm²

Yellow Connector: Tool Cable/Wire Size 12-10 AWG 4.0-6.0mm²

White Connector: Tool Cable/Wire Size 26-24 AWG 0.25-0.34mm²

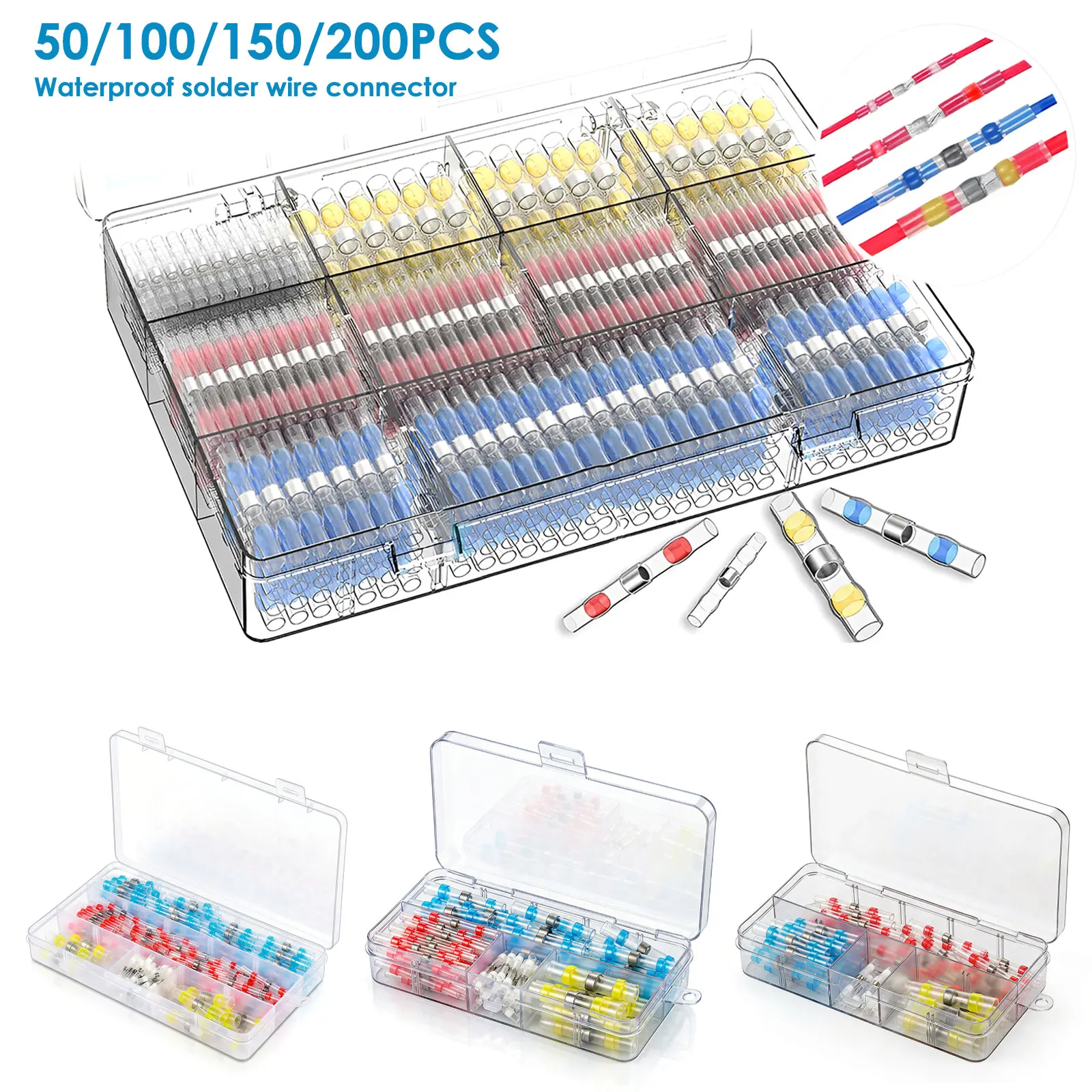

Quantity(optional): 200PCS, 150PCS, 100PCS, Style 4

Notes:

1.There may be slight differences between the picture and the actual color of the commodity. We will try our best to show you the exact color.

2.Please allow slight dimension difference due to manual measurement.

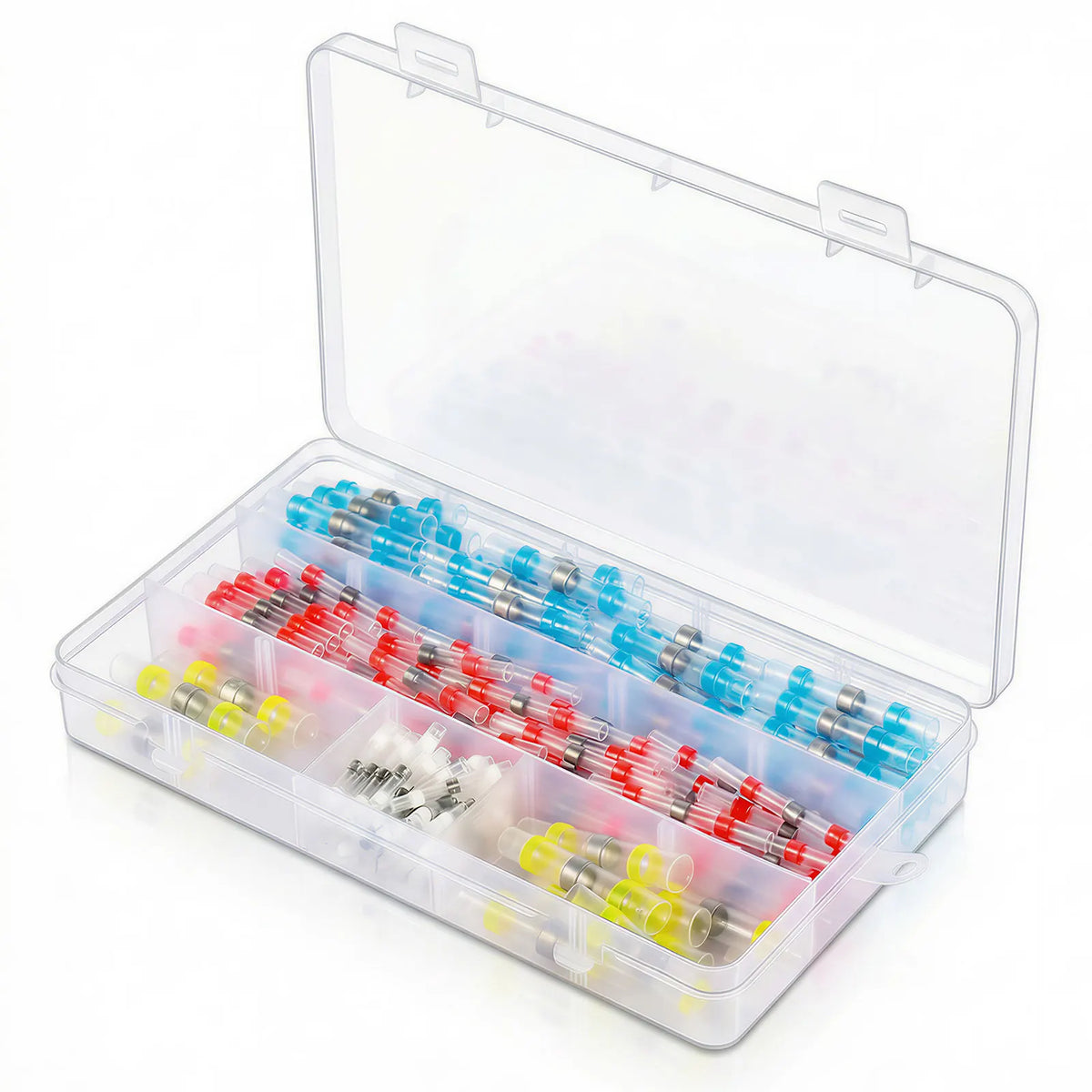

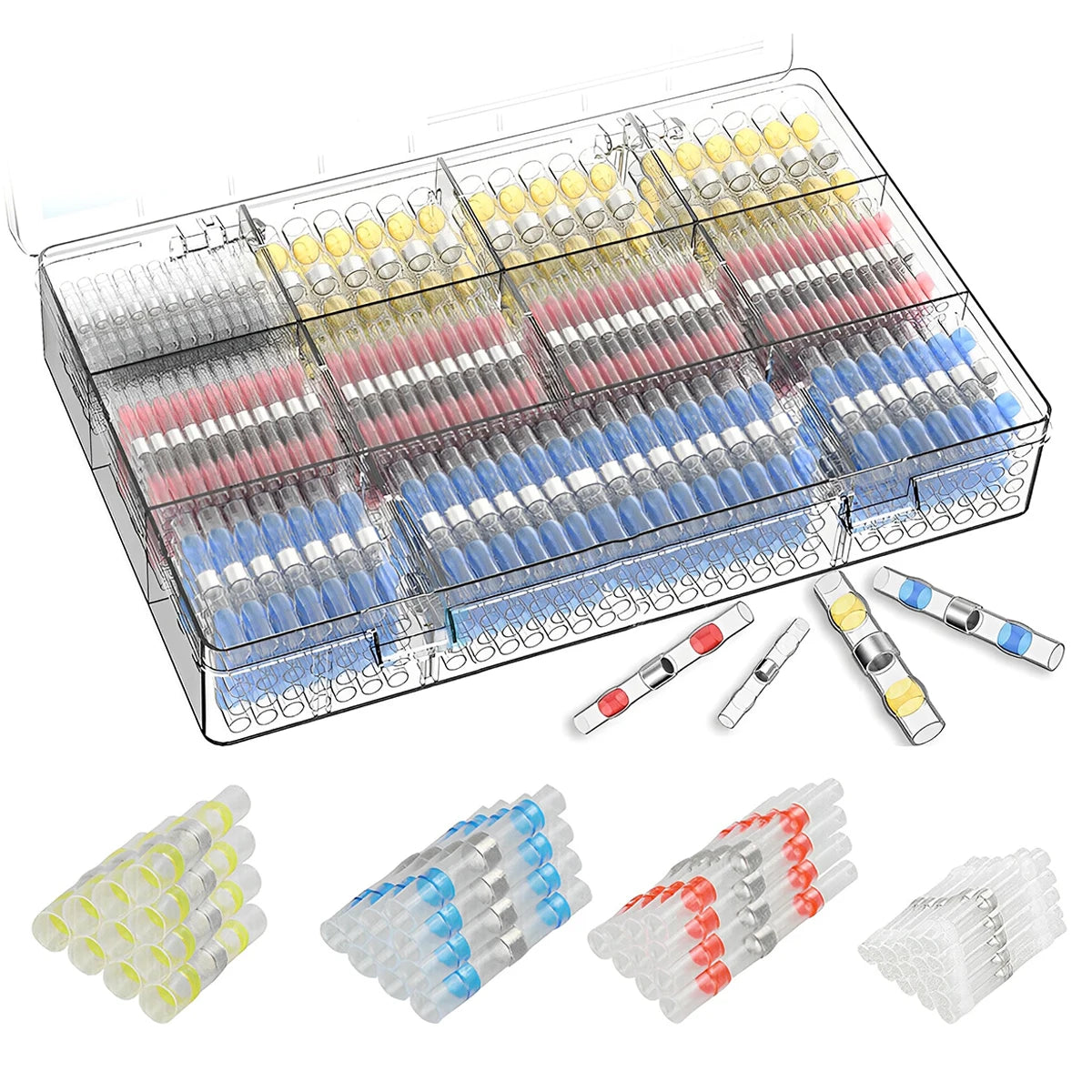

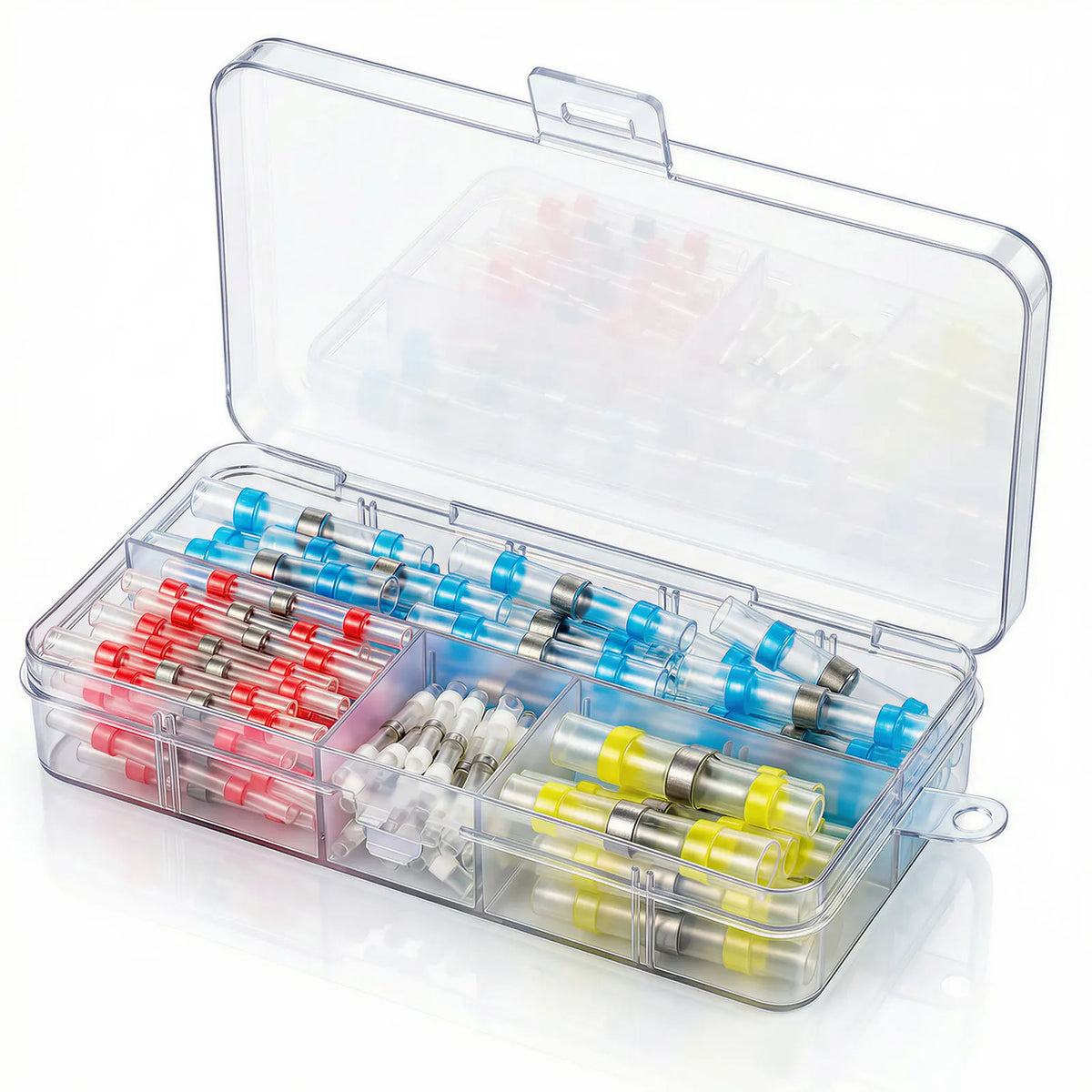

Parts List:

01:

90×Red Heat Shrink Connector

50×Blue Heat Shrink

20×Yellow Heat Shrink Connector

40×White Heat Shrink Connector

(Random placement format)

OR

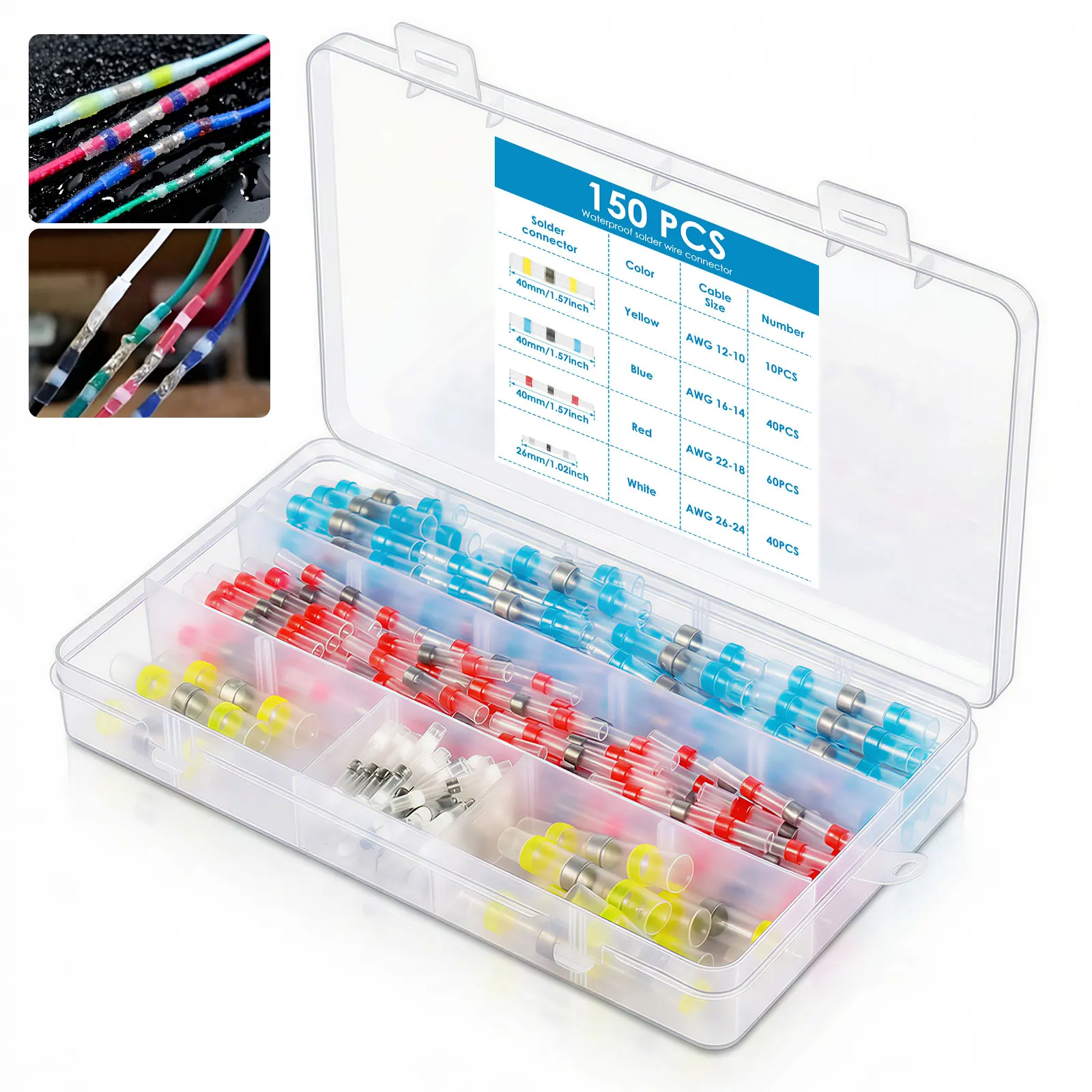

02：

40 x White Connector

40 x Blue Connector

60 x Red Connector

10 x Yellow Connector

OR

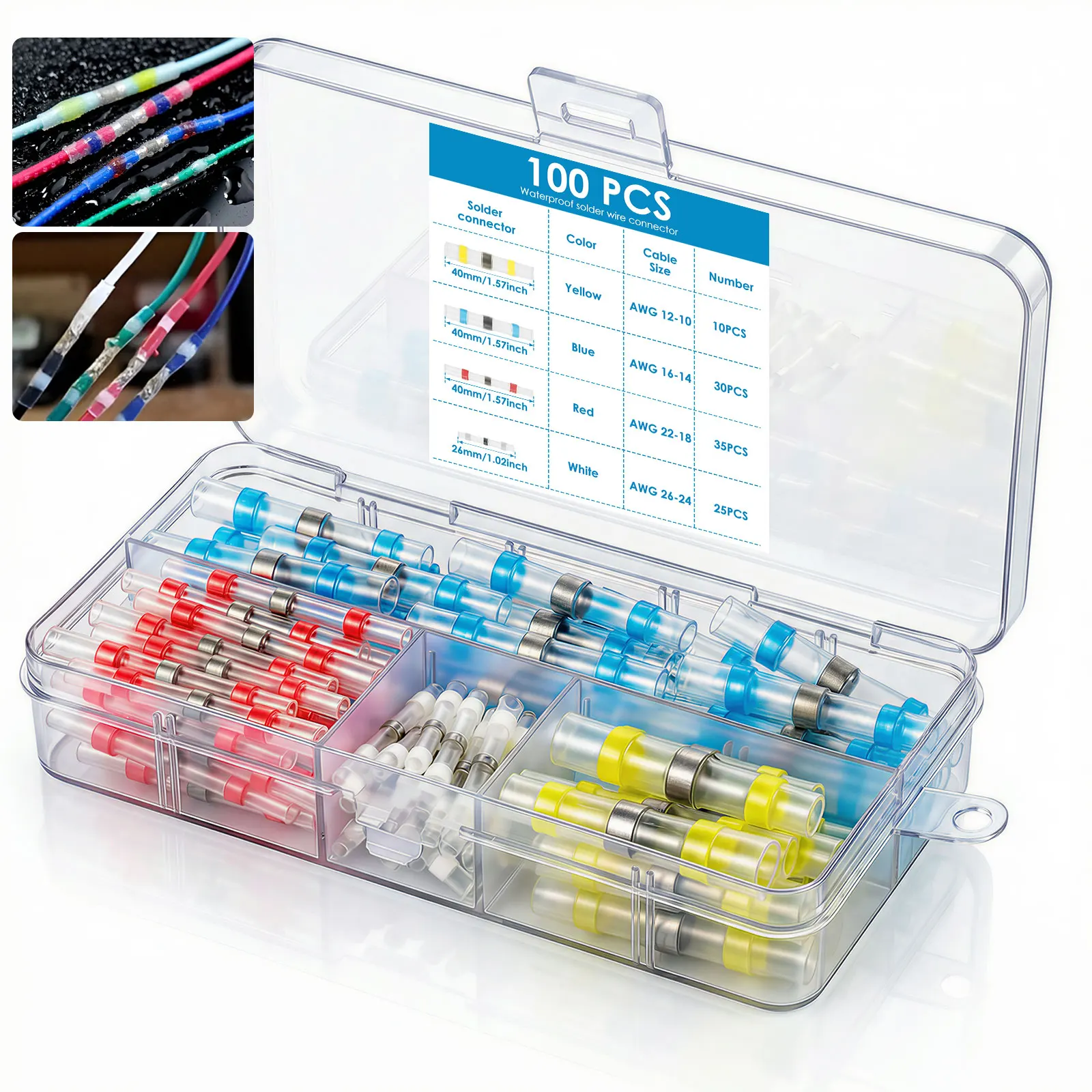

03：

25 x White Connector

35 x Red Connector

30 x Blue Connector

10 x Yellow Connector

OR

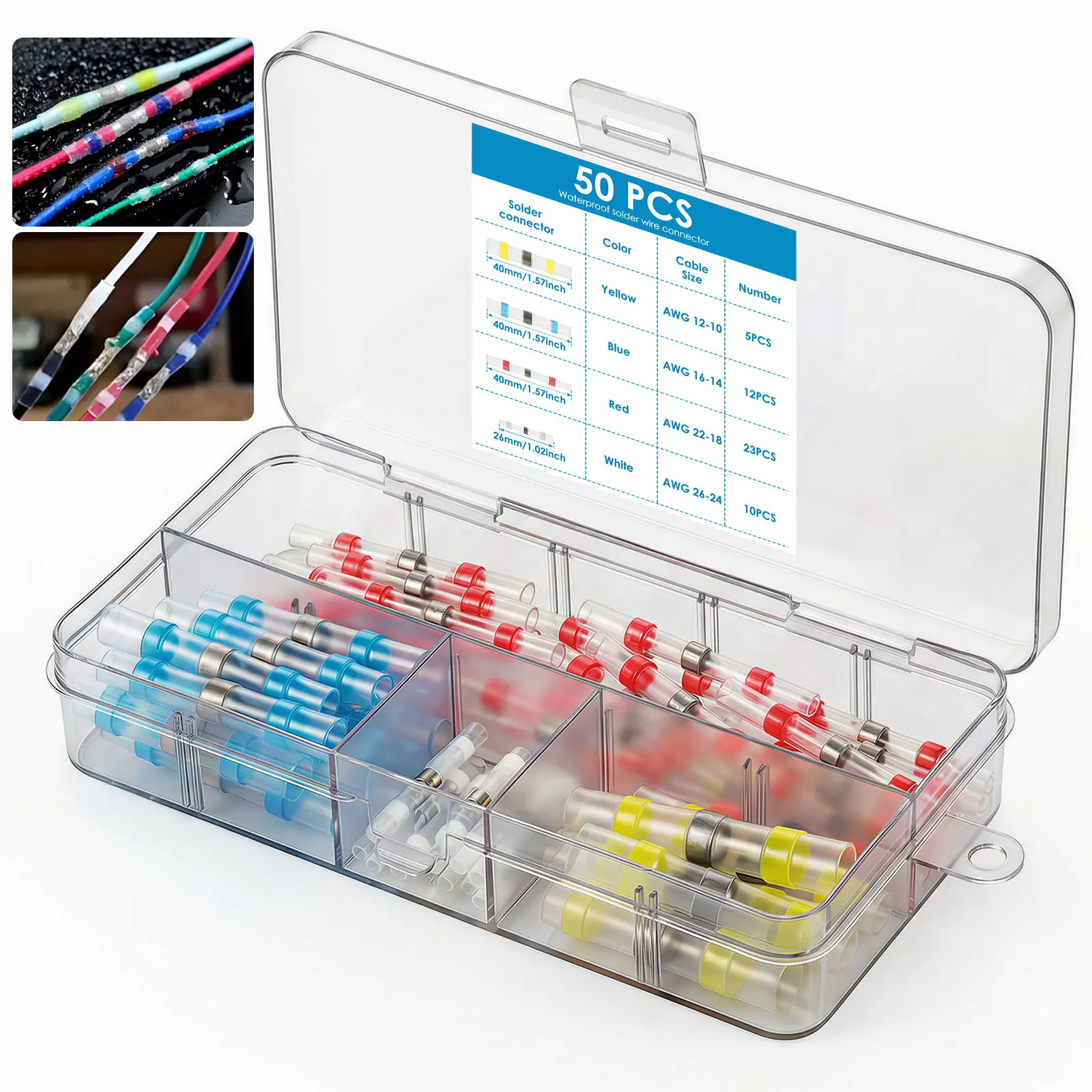

04：

10 x White Connector

12 x Blue Connector

23 x Red Connector

5 x Yellow Connector
