20PCS Wired Chip Led SMD 3V Led Lamp For Models Train P

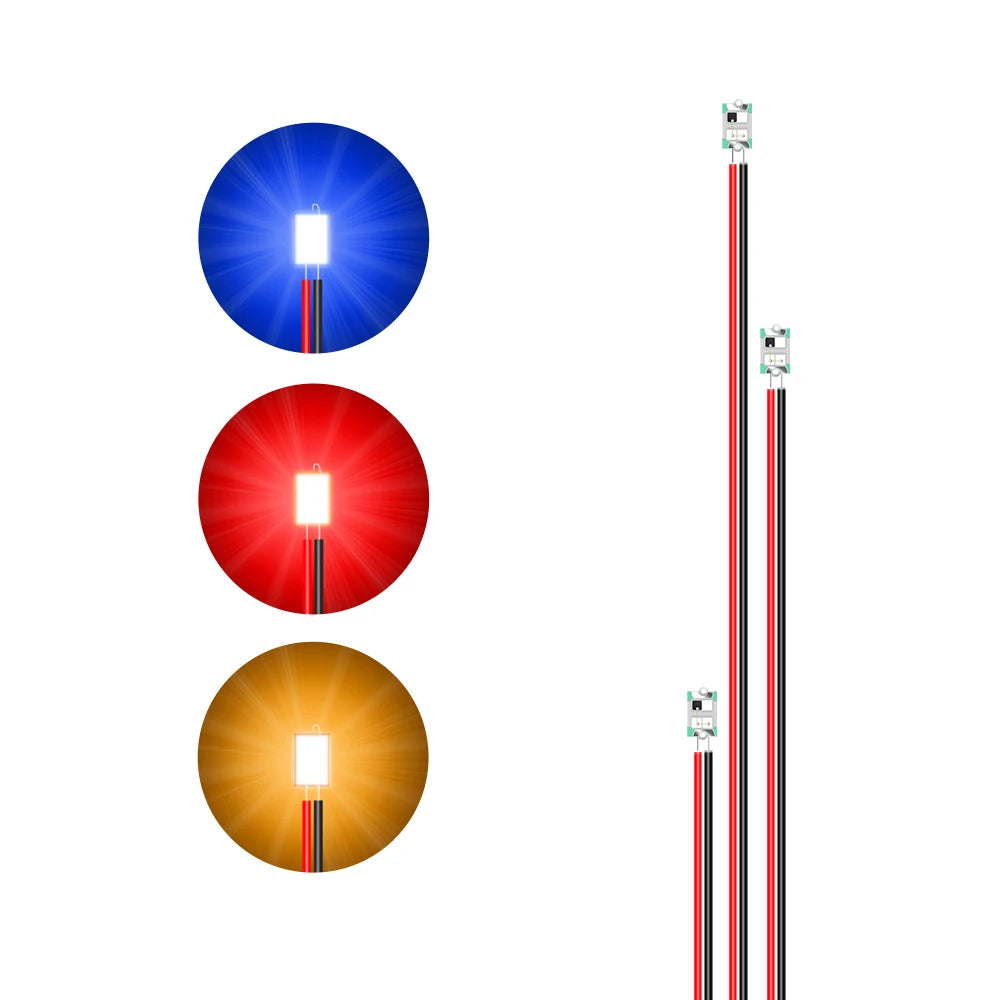

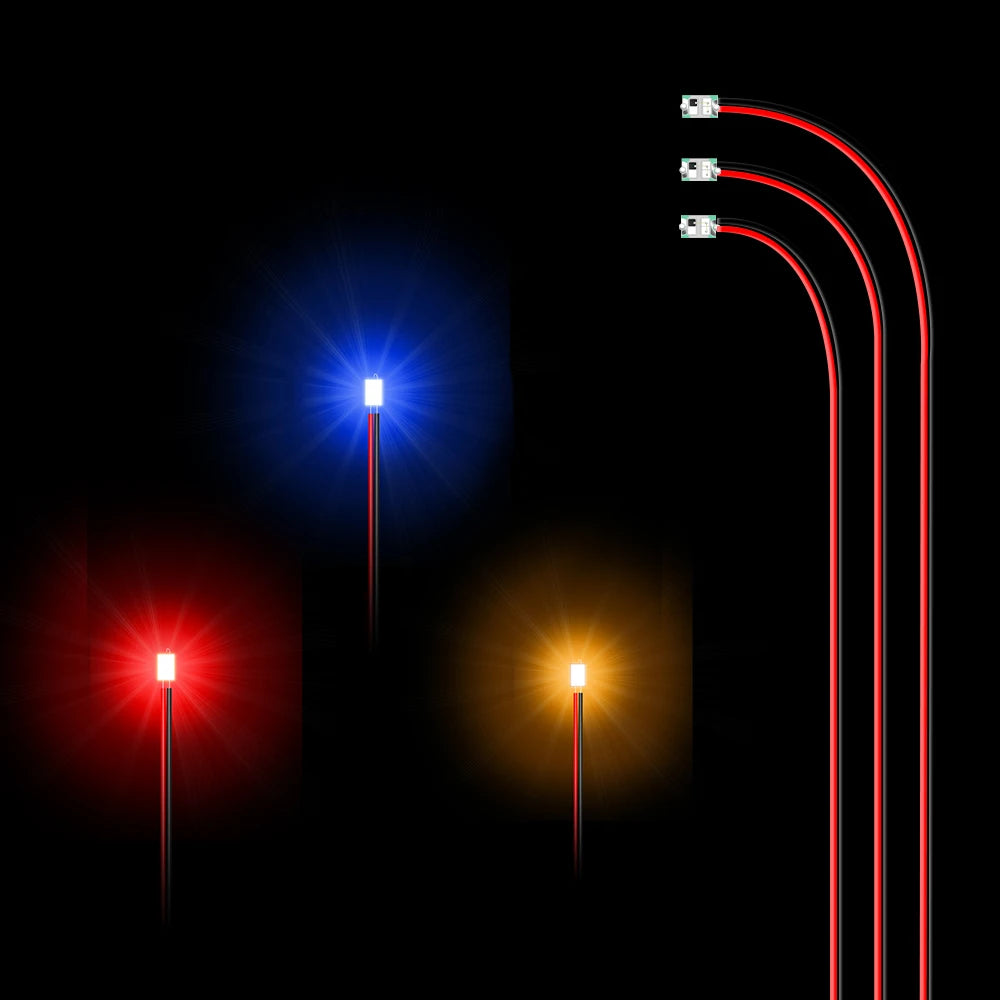

5 Colors SMD Pre-soldered micro litz wired LED leads

Include: 20PCS

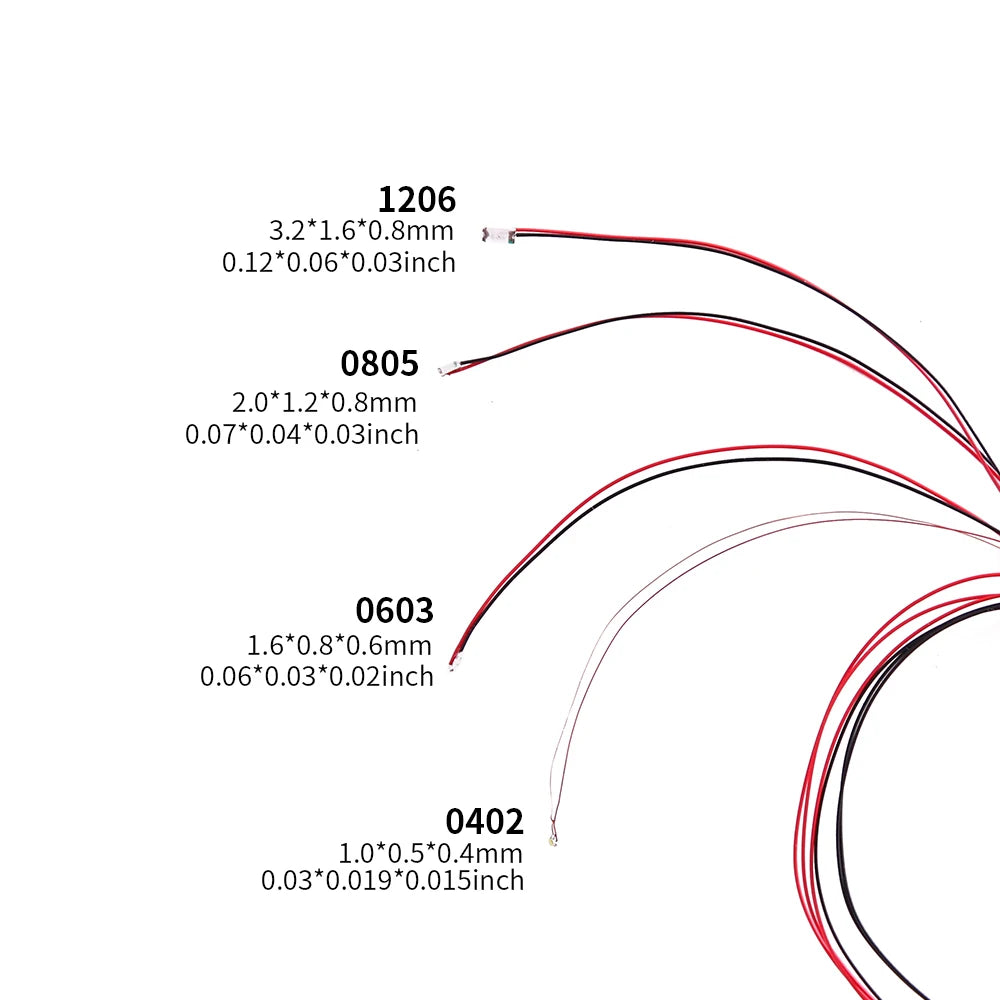

Size: SMD Led 0603 1206 and 0805

0603 size : 1.6mm*0.8mm*0.6mm

0805 size : 2mm*1.2mm*0.8mm

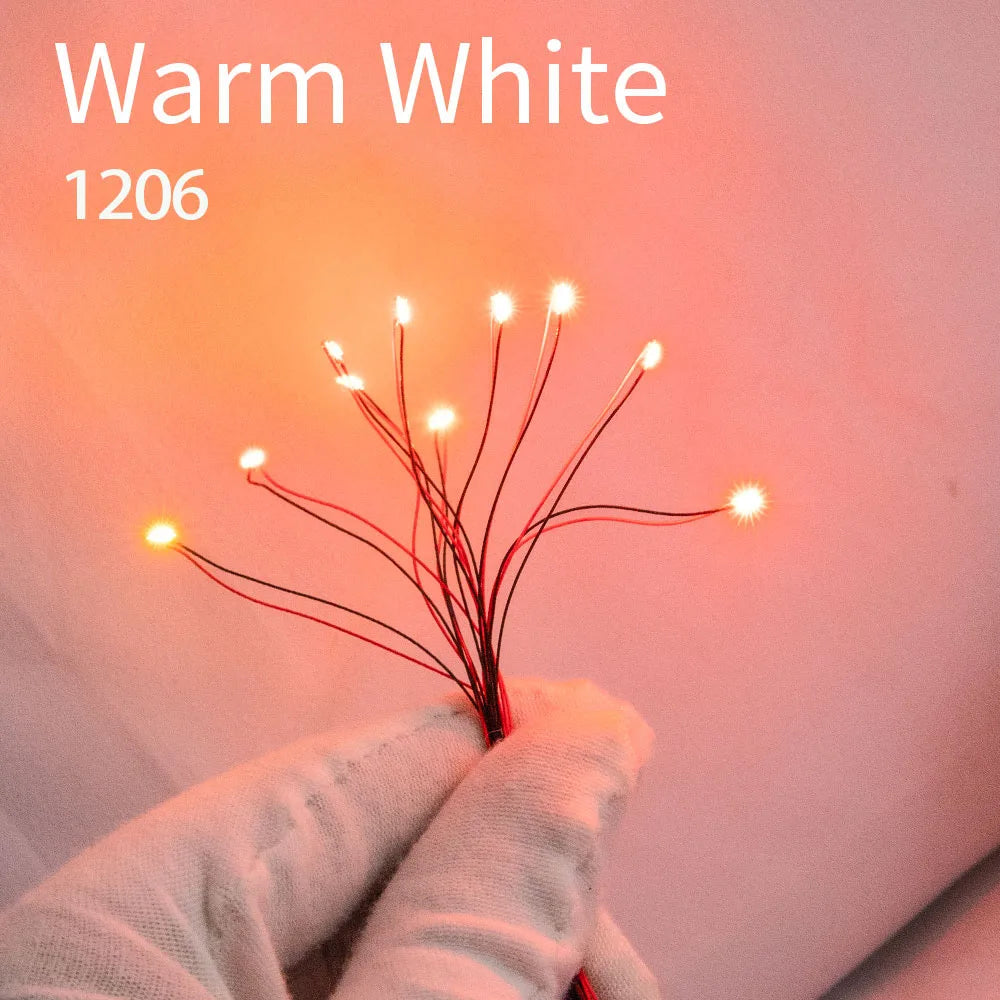

1206 size: 3.2mmx1.6mmx0.8mm

Wired Diameter : Very tiny mini wires that can be hidden in anywhere when you operate it .

Wire length: approx. 200mm

Forward voltage: 2.8V~3.4V, AC or DC compatible

Forward current (typ/max): 15mA/20mA

Viewing angle: 120°

Feature:
The insulation is made from a highly heat-resistant material with a high Teflon®-fraction. there is almost no longitudinal shrinkage during soldering.
Translucent silver stranded micro litz wire with only 0.28 mm in diameter is used for optimal insulation.
Pre-wired units take all the work out of it for the modeler.
Offering maximum flexibility when applying the LED and is ensuring place-saving usage.
The Cathode is black and the Anode is red.
Small in size.
Very light in weight.
Fine workmanship and stable performance.
Long service life.
Perfect for small models and really tight places.

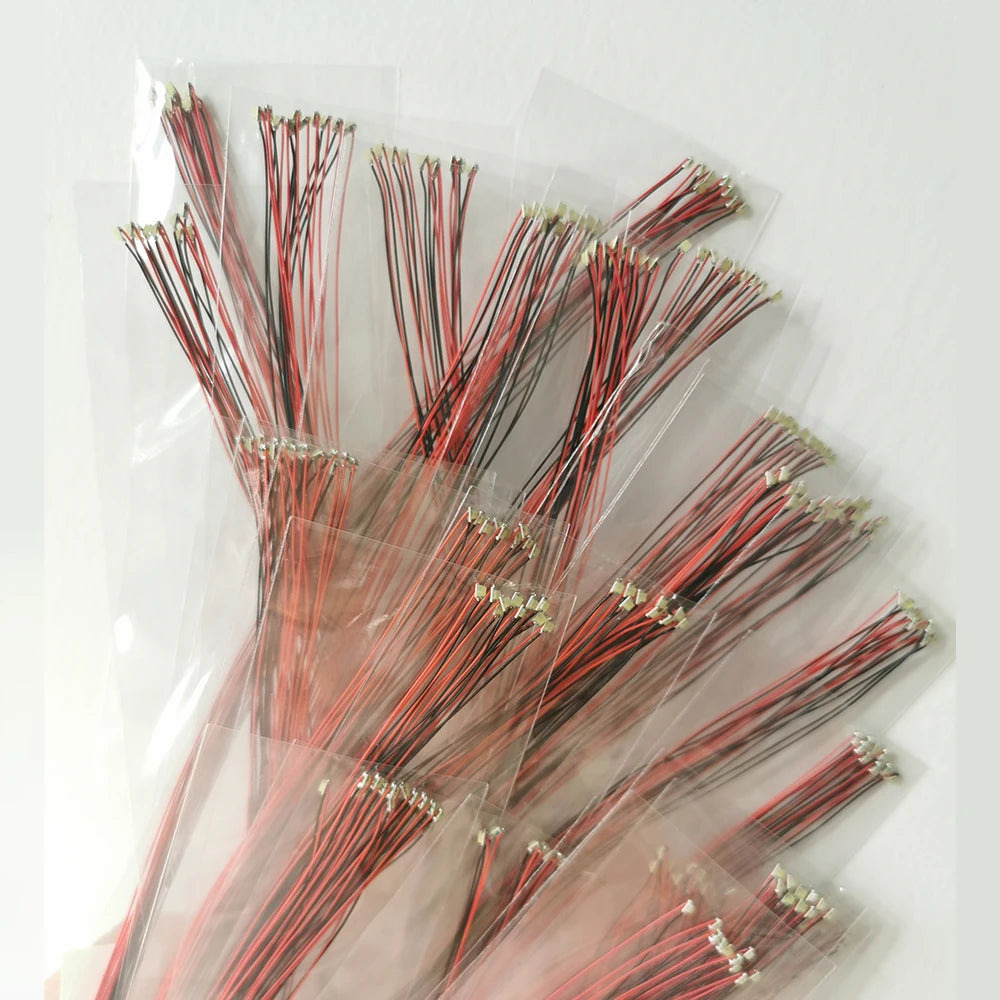

Package included:
20Pcs Chip SMD Leds
