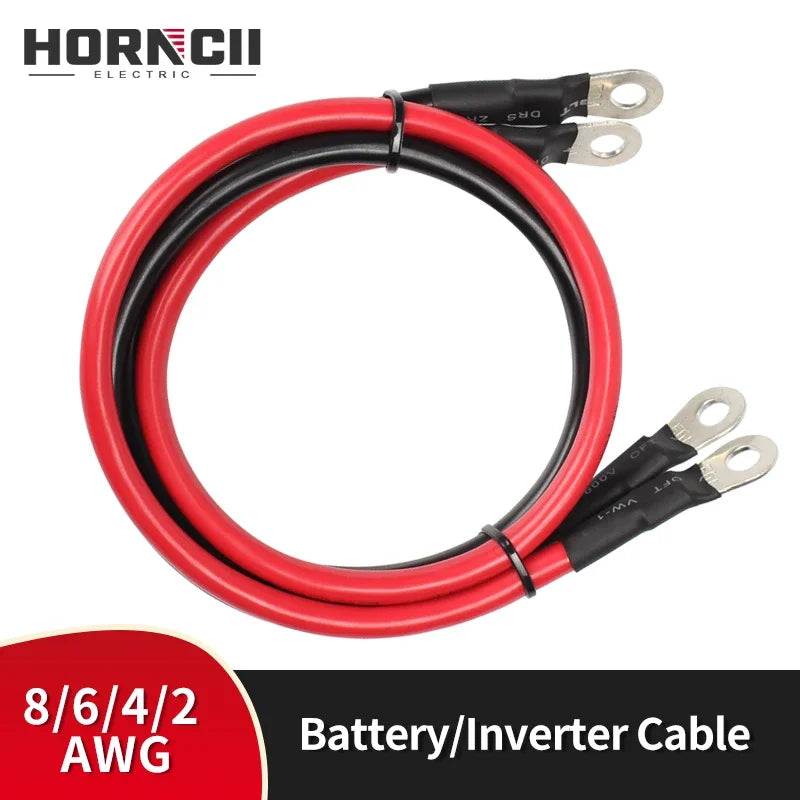

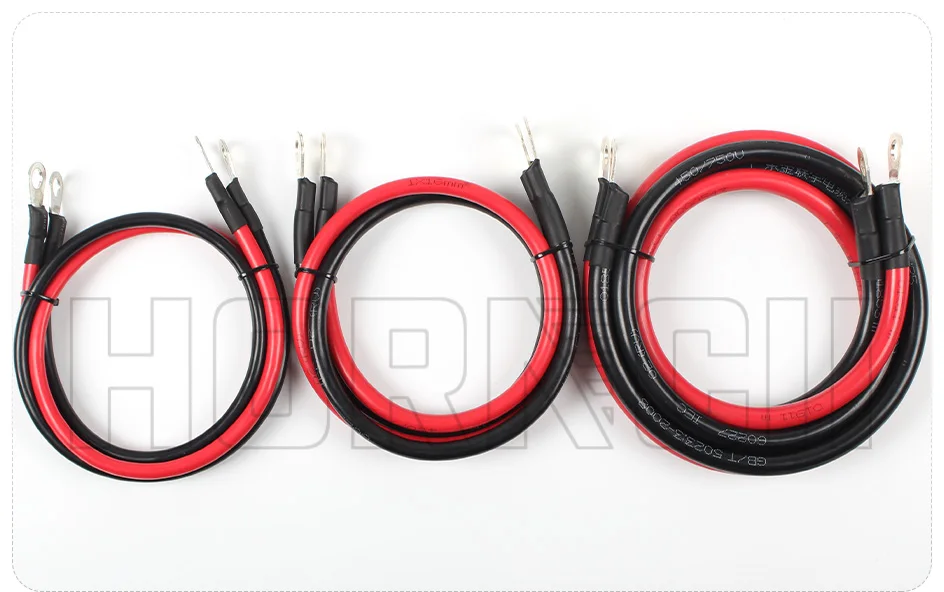

Battery/Inverter Cable

INTRODUCTION

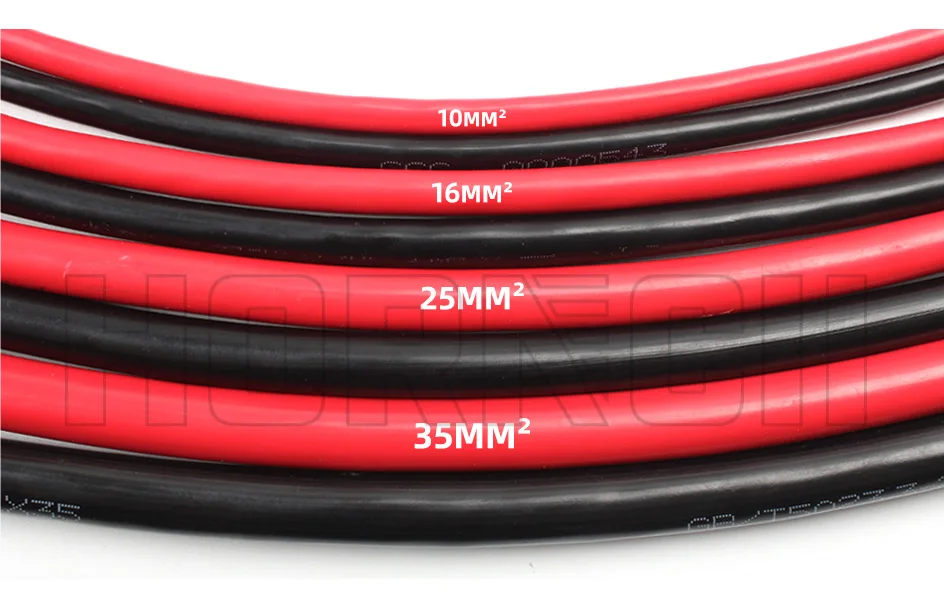

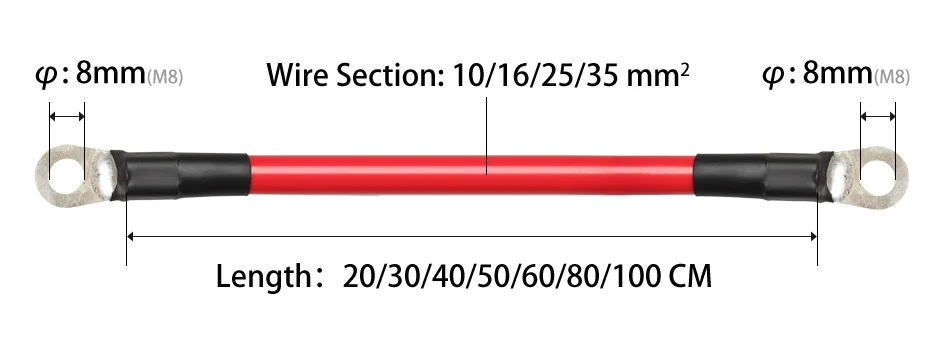

Wire Size:10mm²(8 AWG) / 16mm²(6 AWG) / 25mm²(4 AWG) / 35mm²(2 AWG);
Lug Material:Tinned / silver-plated copper;
Insulation Material:PVC;
Aperture:8mm(The default is M8 Terminal, if you need M6/M10, please note);
Rated Voltage:450/750V;

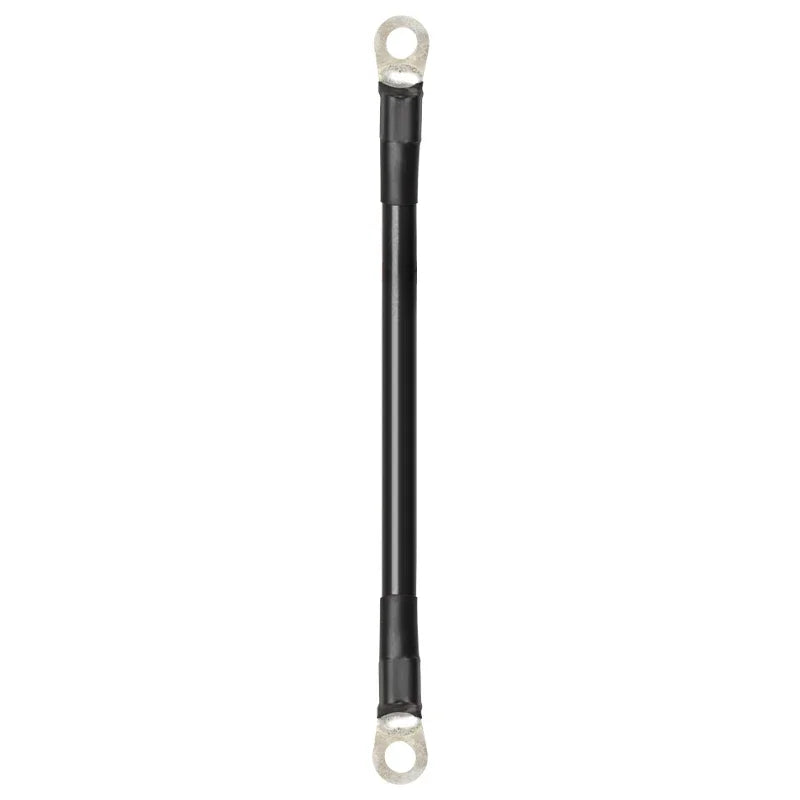

Length:20/30/40/50/60/80/100 cm or Customized length;
>>>Click to view the longer length options<<<

Lug Installation Method:Crimping and Soldering;
Use Range: Used for connection of car battery, battery, inverter, etc.
Seller Declaration: Note that the unit of the cable is the section of the conductor, not the diameter. Some buyers mistakenly believe that the diameter of a 10mm² cable is 1cm.

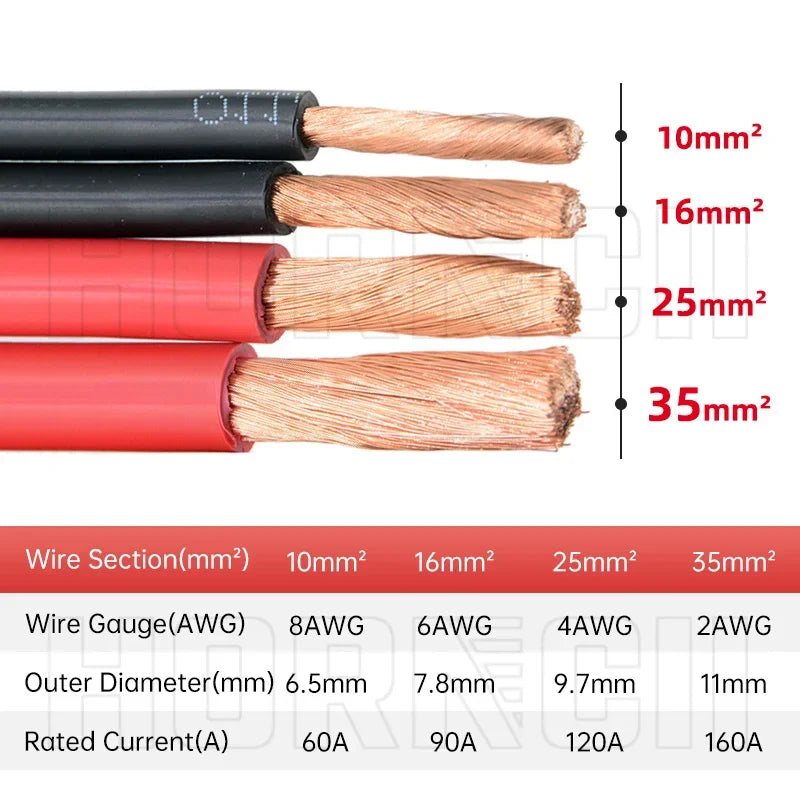

PRODUCT SIZE

Wire Section	Wire Gauge	Outer diameter	Safe Current	Lug hole
Wire Section	(AWG)	(mm)	(A)	(mm)
10 mm²	8	6.5	60	M6 / M8 / M10 6.5mm/8.5mm/10.5mm
16 mm²	6	7.8	90
25 mm²	4	9.7	120
35 mm²	2	11	160

ADVANTAGES

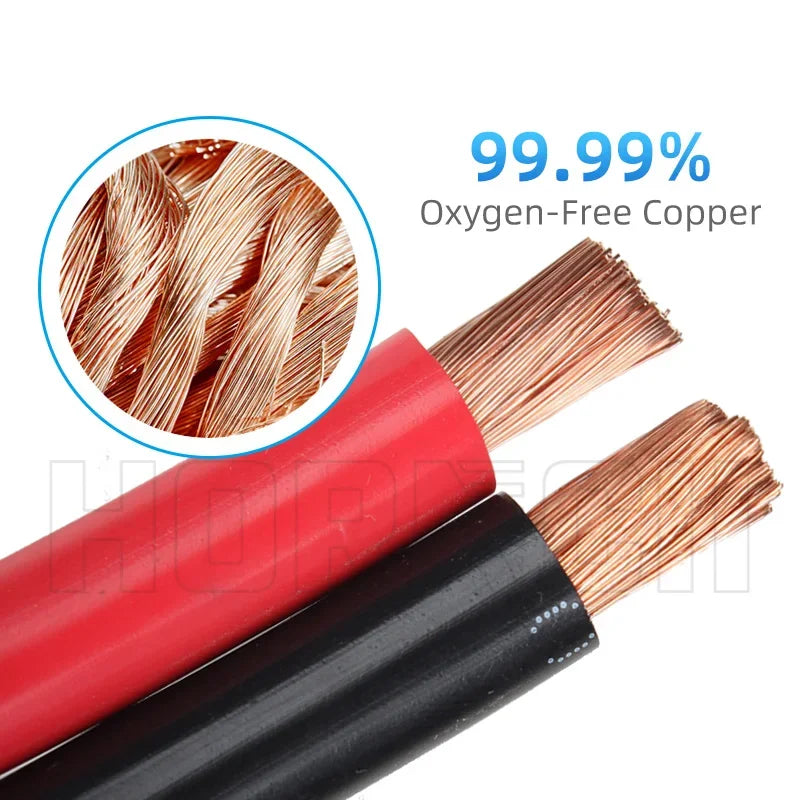

99.99% pure oxygen-free copper
High-quality pure oxygen-free copper, strong current load capacity, anti-oxidation, low resistance

high-quality insulation
The use of environmentally friendly polyvinyl chloride materials has good wear resistance, corrosion resistance, anti-aging, and flame retardant properties.
Uniform thickness and low eccentricity.

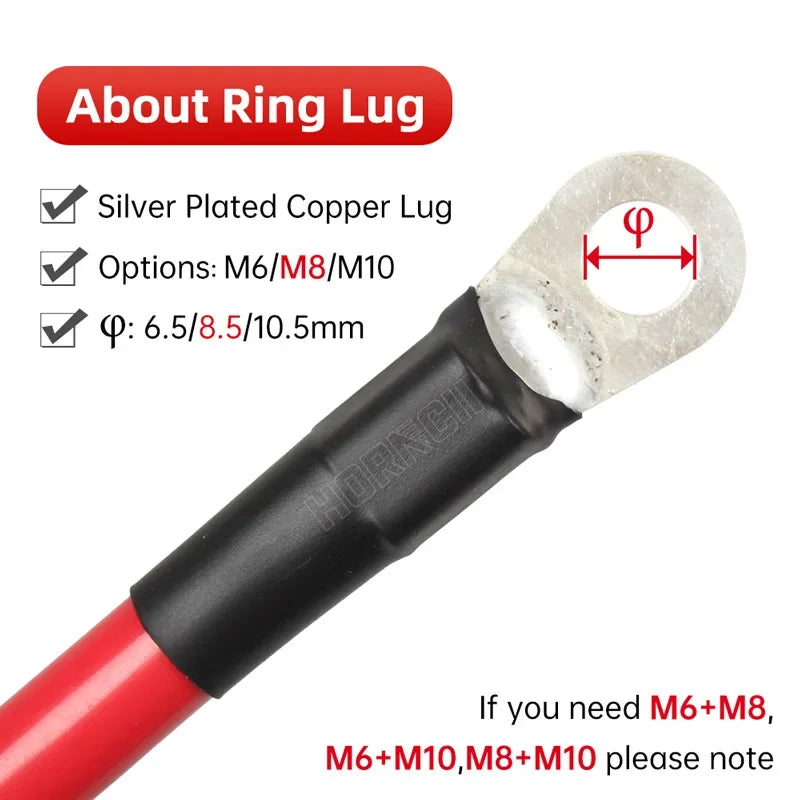

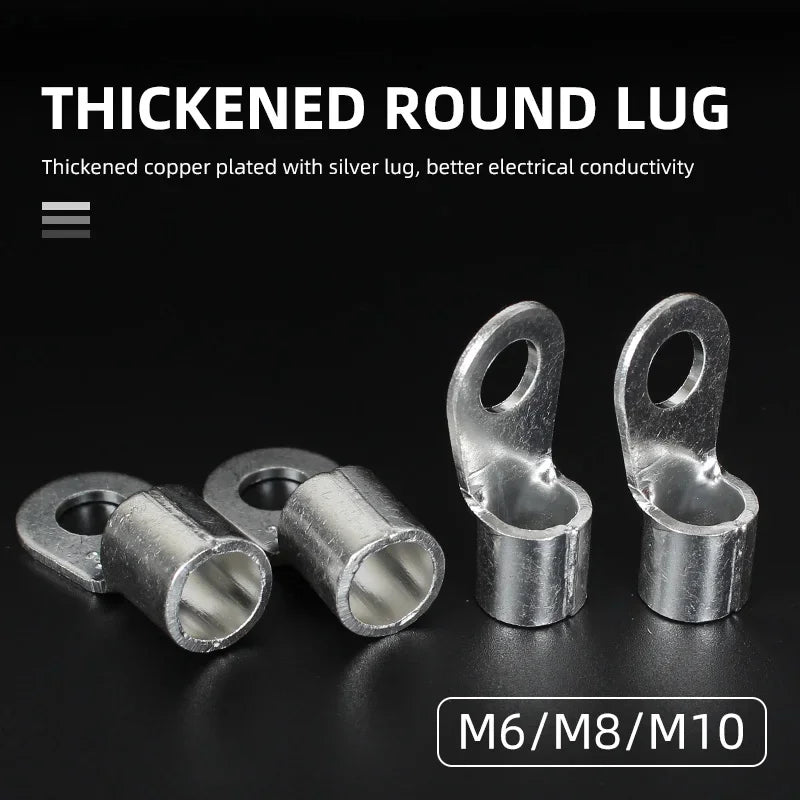

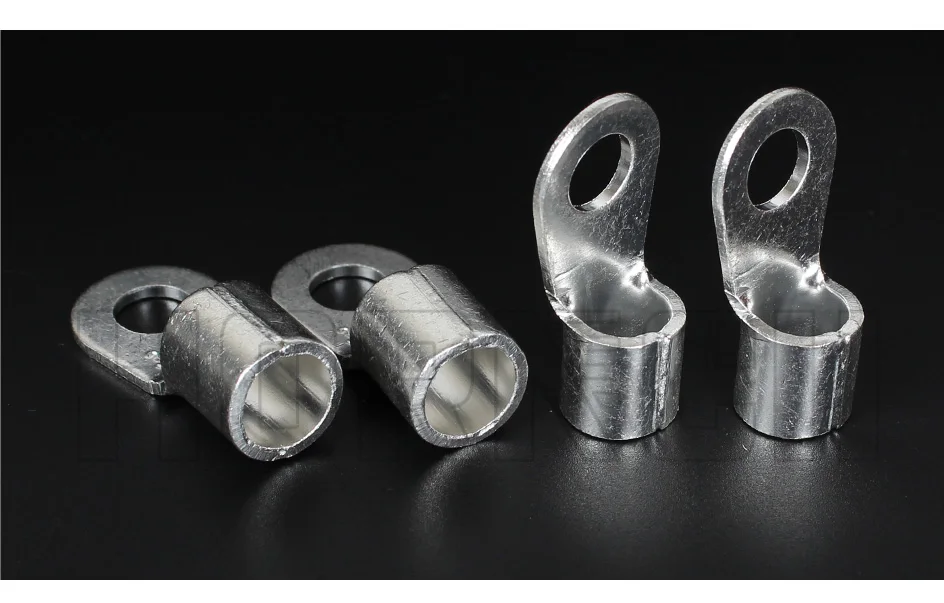

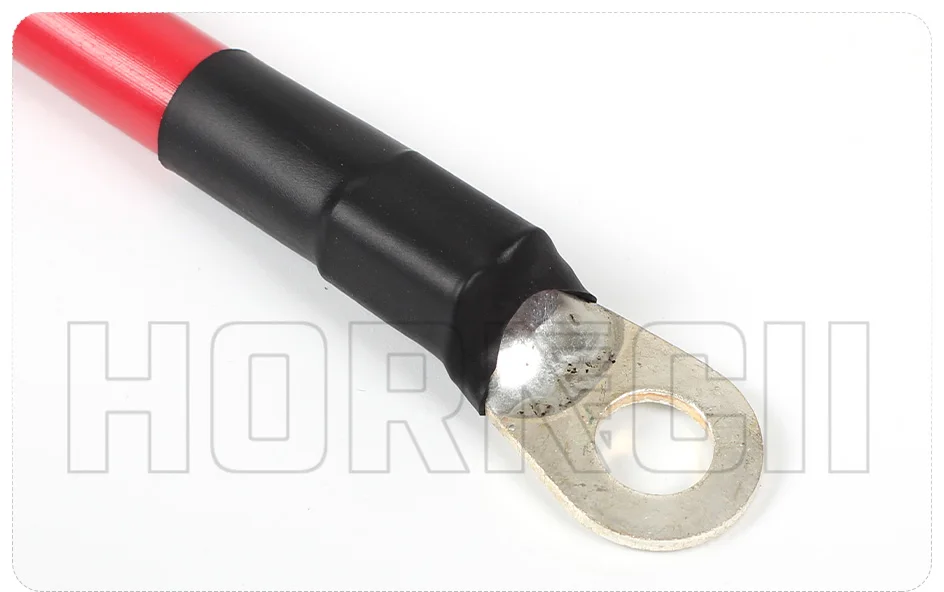

Round terminal (thickened)
Tin-plated copper/silver-plated copper ring Lug is anti-oxidative and has better conductivity

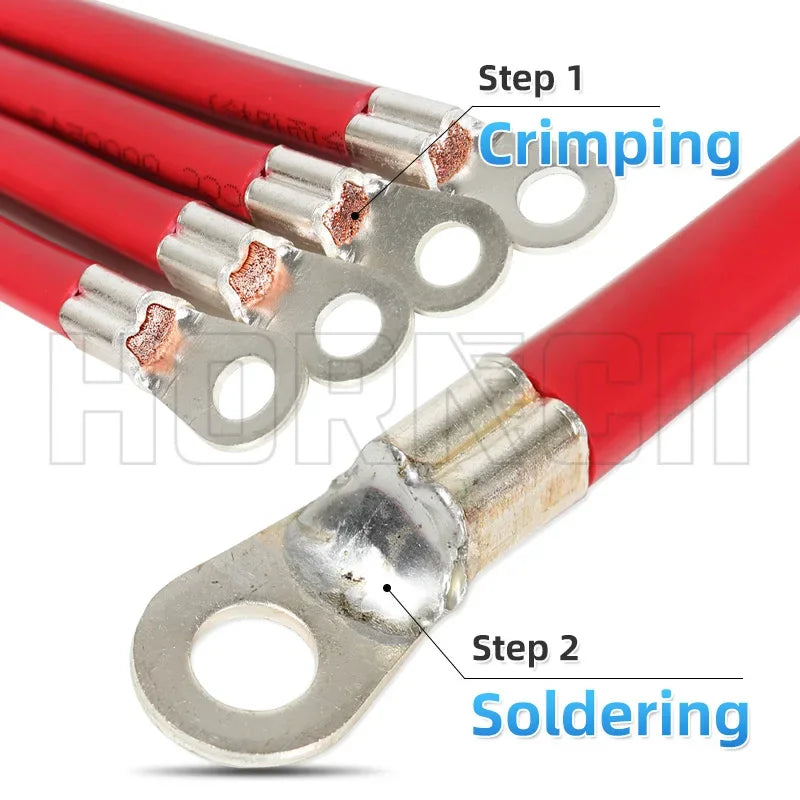

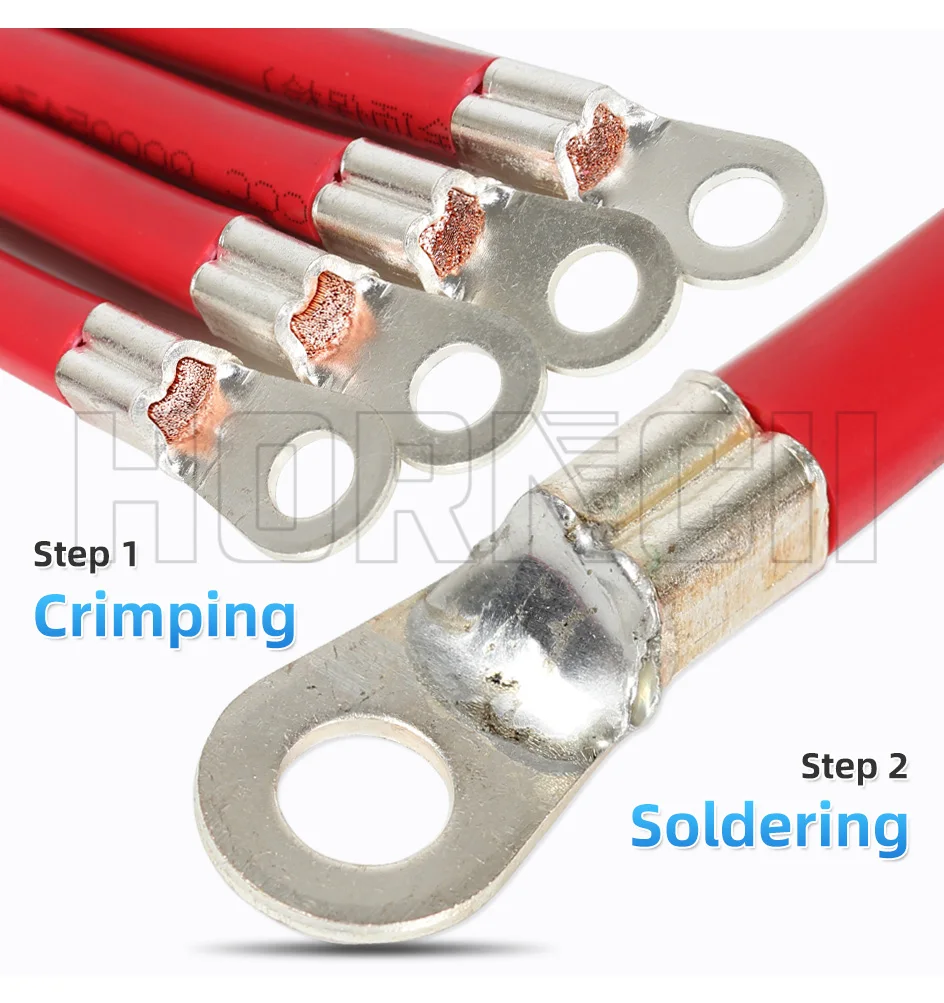

Crimp and Solder Process
Soldering after crimping with high-power hydraulic press makes the connection of terminals and wires stronger.
Not easy to fall off, and prevent the wire from being exposed to oxidation.
