Heat Shrink Tube Sleeves Waterproof Solder Seal Electrical Wire Connector Butt Splice Terminals Heat Shrinkage Cable Connectors

Product Name: Soldering ring heat shrink terminal
Material: Polypropylene+solder
Item Type: Solder connector
Minimum Temperature of Solder Melting: 138℃
Minimum Retraction Temperature: 80℃
Working Temperature: -55-125℃
Retraction Temperature: > 160℃

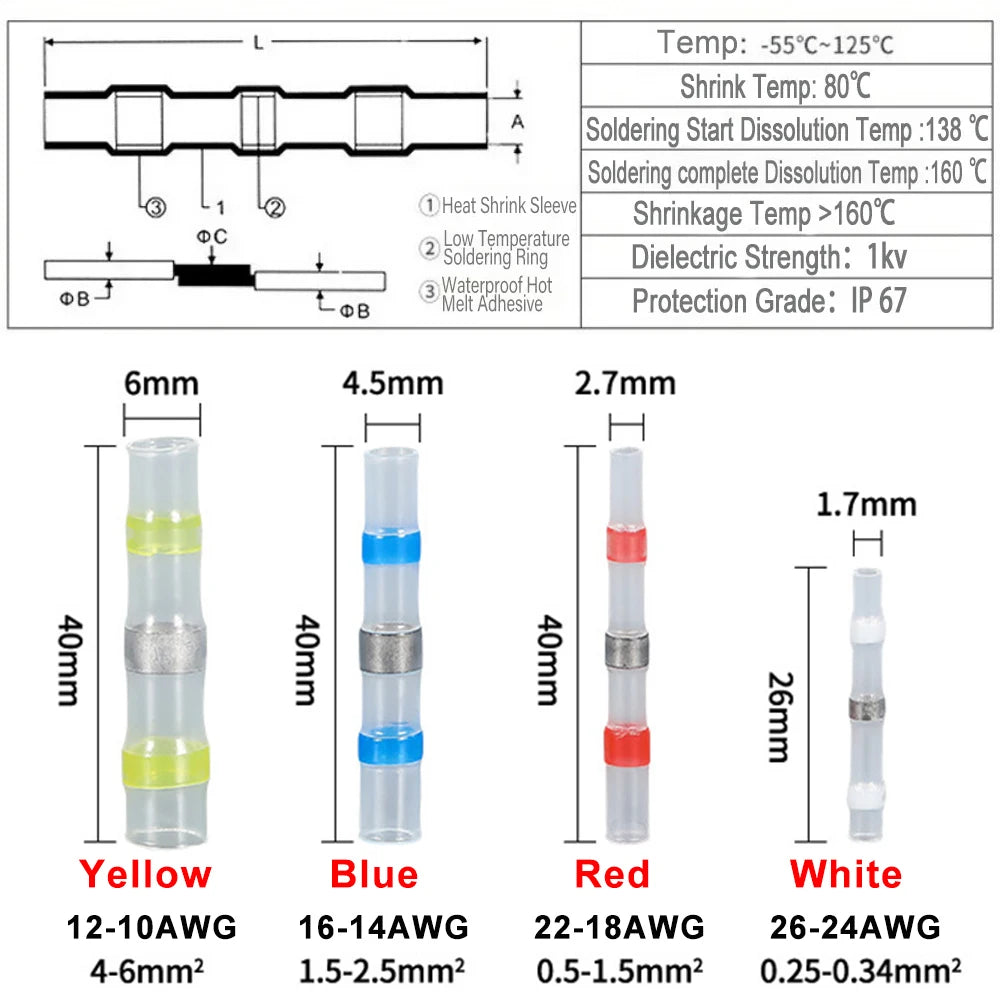

Yellow Size: 6*40MM
Blue Size：4.5*40mm
Red Size：2.7*40mm
White Size：1.7*26mm



Features:
1.Double-wall design pipes means that polyolefin pipes inside, hot-melt glue outside.

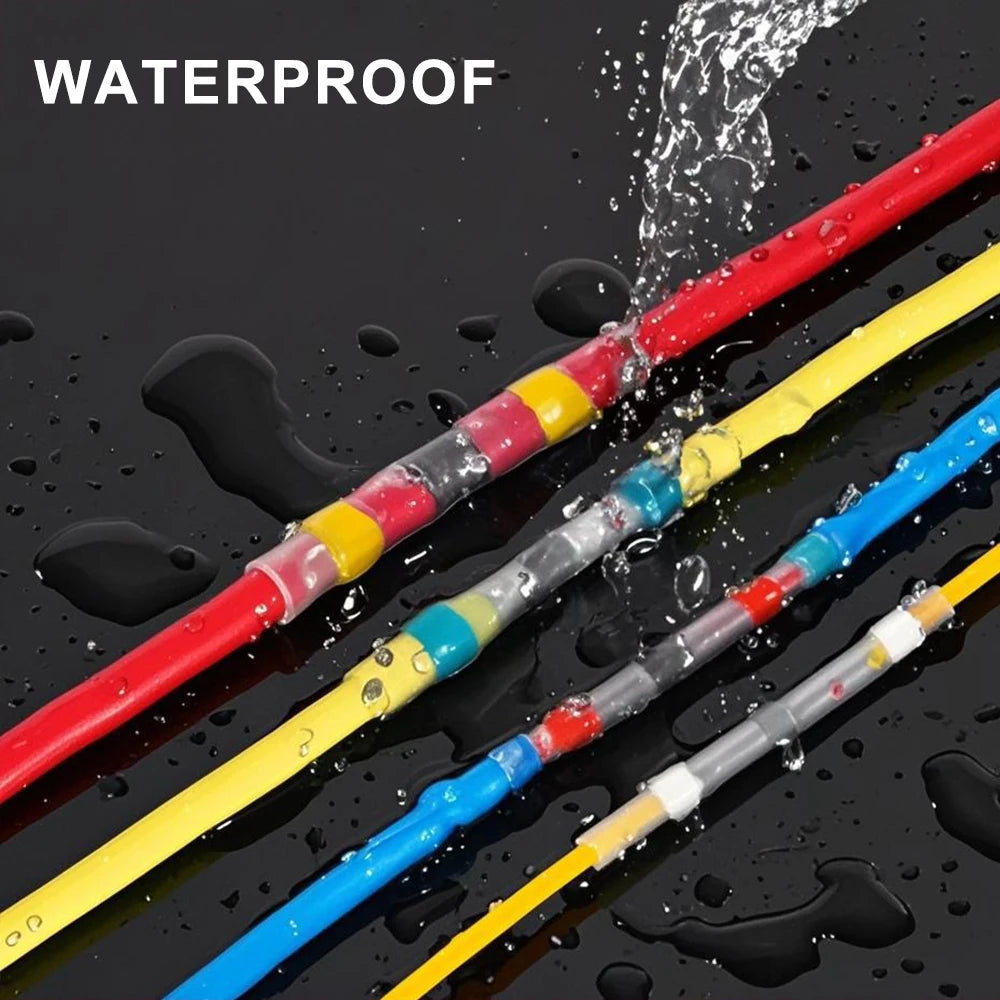

2.Waterproof glue supports thermal activation, used in marine and automobile applications.
3.Waterproof solder connectors prevent cable corrosion, which is helpful to solder and seal.

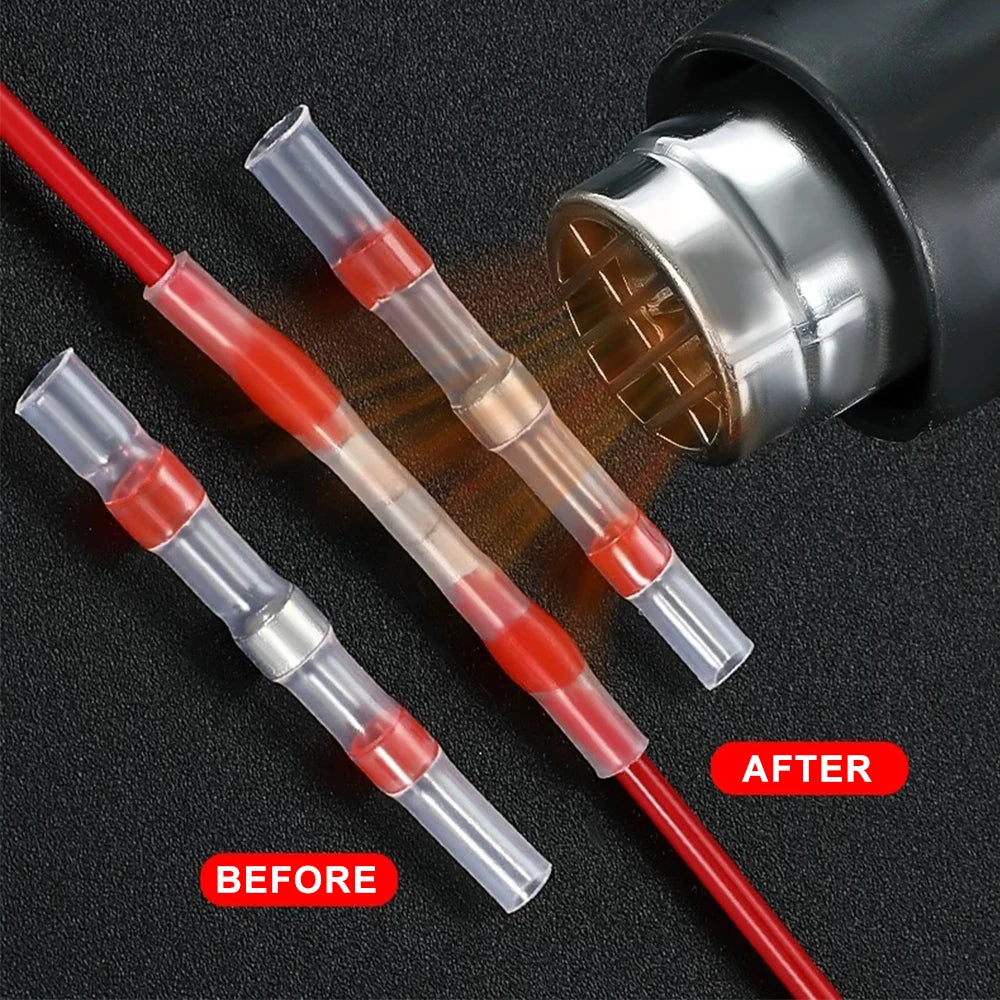

4.No extra step is required when you use such colder connector to connect and the operation is simple.
5.our Solder connector's quality is guaranteed and improved for more durability, you can use it with confidence.

Wire butt terminal is commonly used in electronics, ships, automobiles, aerospace and other working fields, which is
good wire connection accessory.Polyolefin material has good corrosion resistance, low water absorption,and excellent electrical insulation performance
