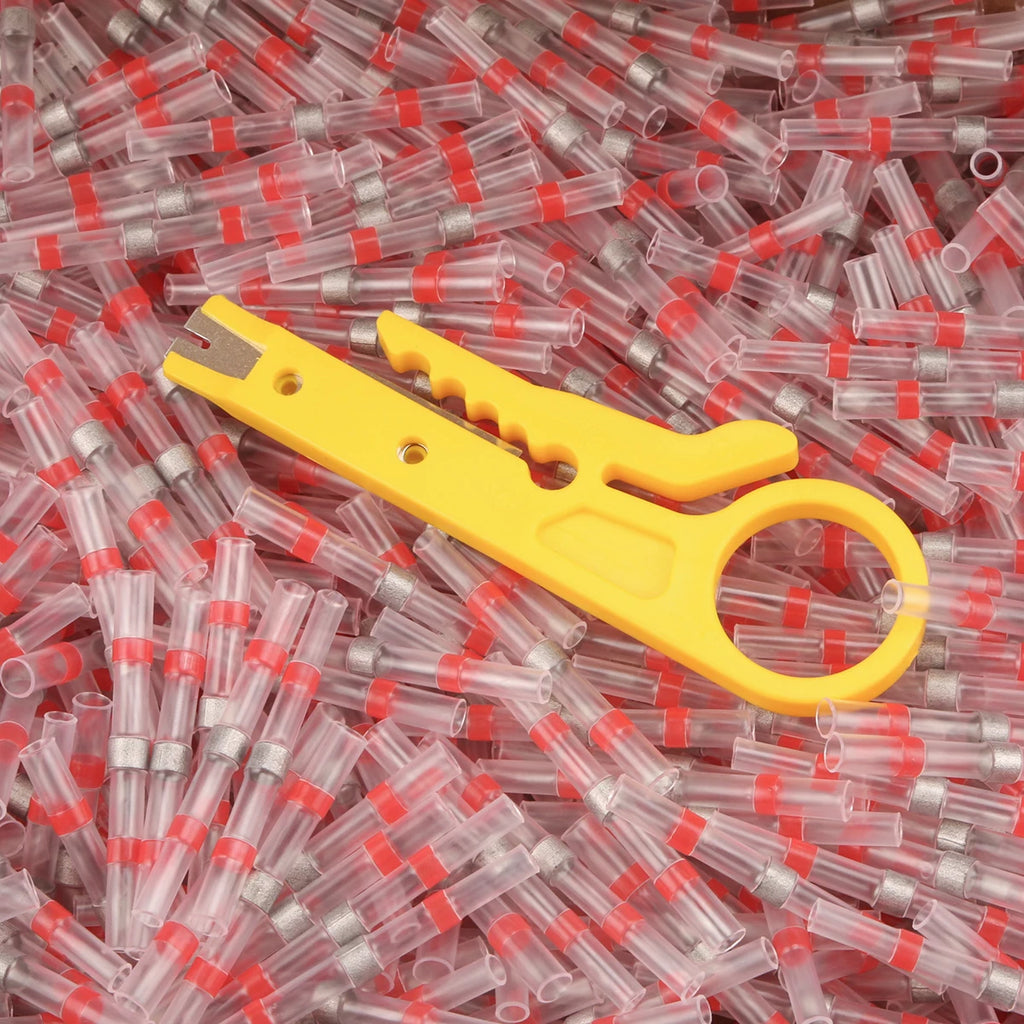

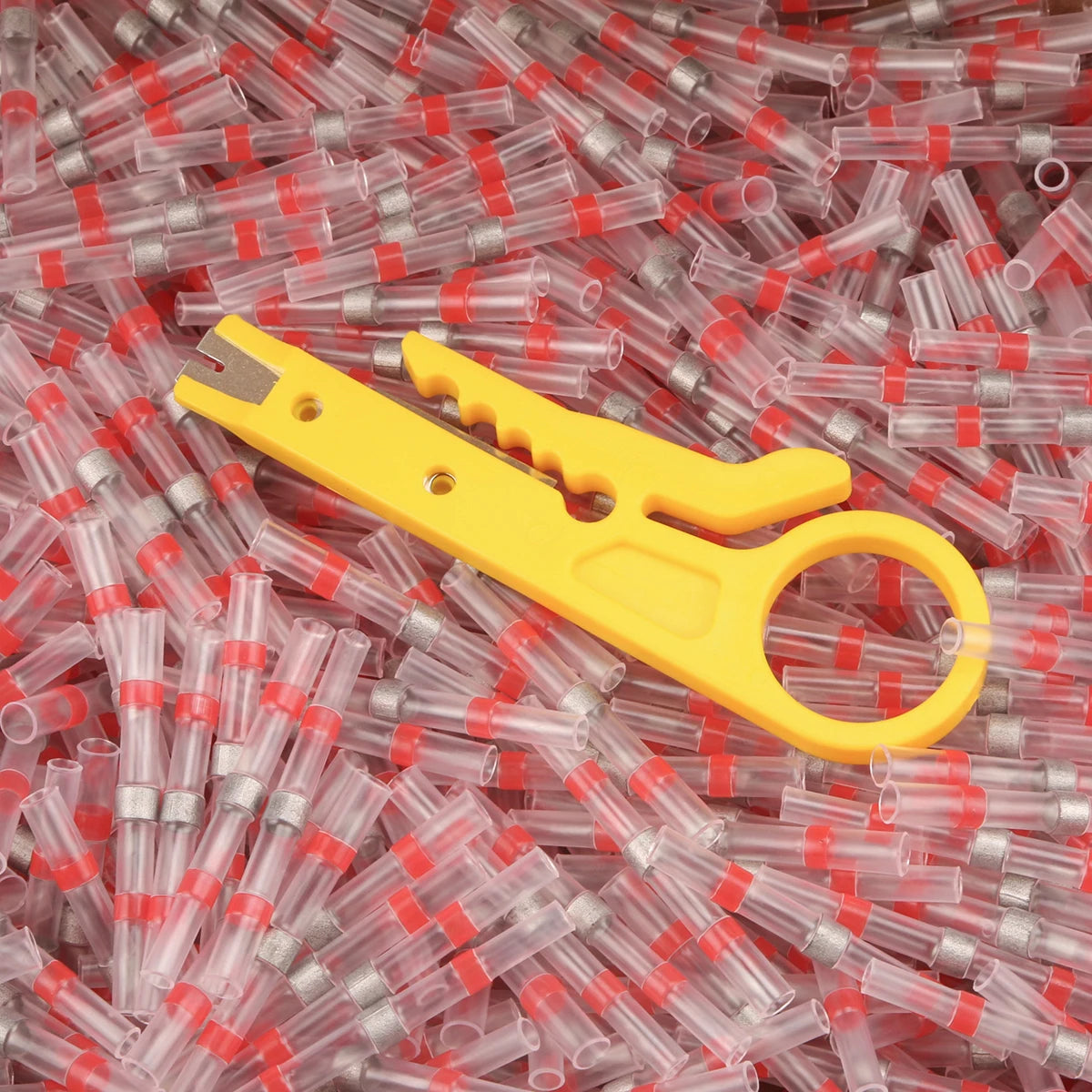

Solder Seal Heat Shrink Waterproof Butt Wire Connectors Terminals Electrical Copper with A Soldering Sleeve Bullet Connector
Solder Seal Heat Shrink Waterproof Butt Wire Connectors Terminals Electrical Copper with A Soldering Sleeve Bullet Connector
Customizable Options
Available in customizable sizes, these connectors can be tailored to fit your specific wiring needs.
High-Quality Material
Crafted from durable copper, these connectors ensure long-lasting reliability and conductivity.
No Wireless Functionality
Designed without wireless components, these connectors focus on traditional electrical connections.
Easy Installation
These connectors feature a bullet sleeve design, making installation quick and hassle-free.
Low Voltage Compatibility
Certified for low voltage applications (Below 50Vac or 75Vdc), ensuring safe use in various electrical setups.
Technical Specifications:
Shrinkage ratio 2:1
Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside

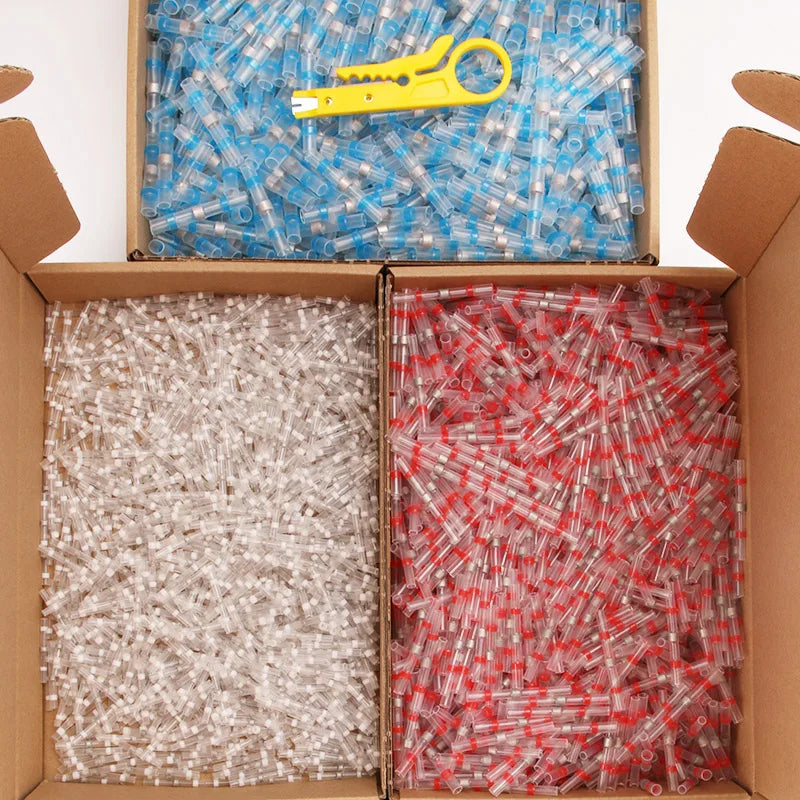

Color coded connector tubing
Heat activated waterproof adhesive
Low temperature solder sleeve
Minimum shrink temperature: 80°C
Minimum temperature for solder to melt: 138°C
Features:

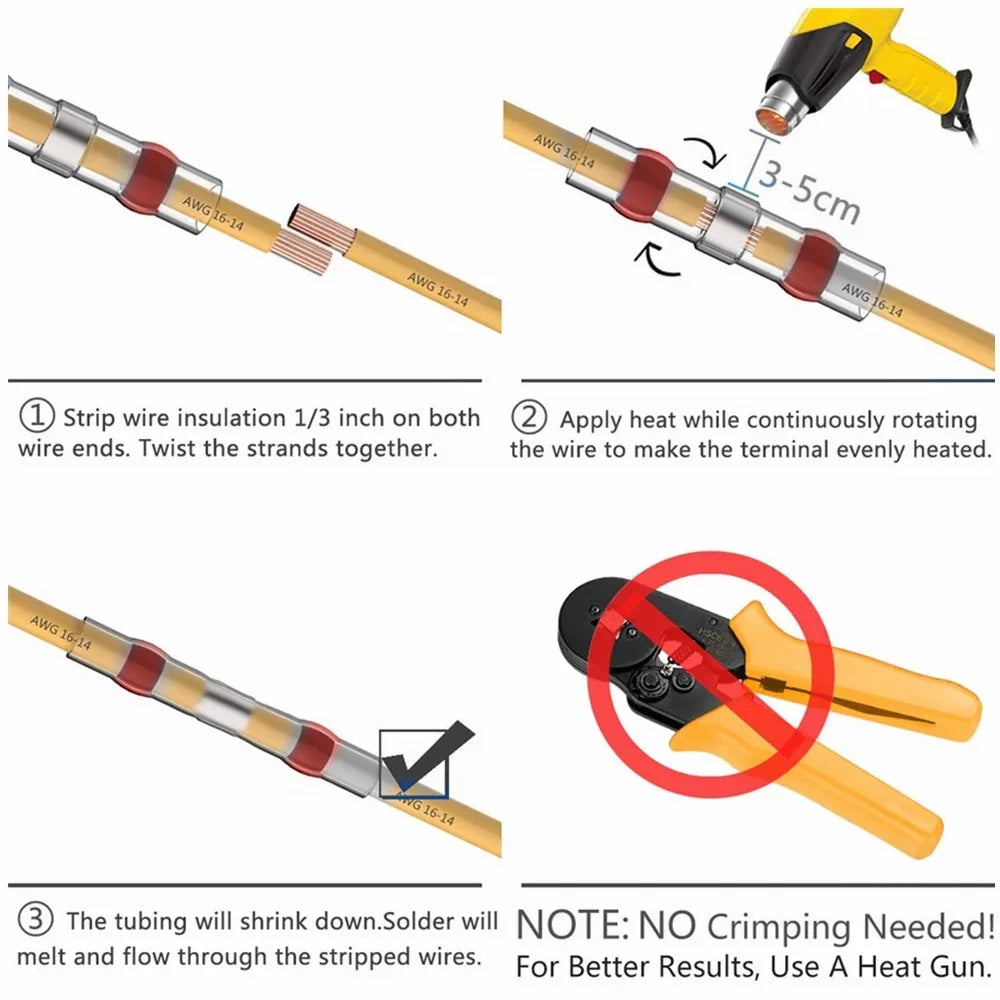

An easy one step connection of wires.
Soldered, insulated and sealed can be ideal.
Use in marine and automobile applications.
Melt adhesive in inside solder and seal and with advanced waterproof function.
Polyolefin heat shrink butt connectors improved pullout strength.
Provide seal, strain relief, cable check and insulation.
Sizes and Quantity:
AWG 22-18 Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5 -1.0 mm²
