DC 5V 1 to 4 port PH2.0 Interface One To Four USB 2.0 Hub Module No Drive USB Splitter Onboard Fuse Overcurrent Protection

Features:
1. Multi port expansion: This hub can expand a single USB 2.0 interface into four independent USB ports, making it convenient to connect multiple USB devices simultaneously.

2. PH2.0 interface design: Adopting PH2.0 interface usually means a more compact and stable connection, suitable for space limited application scenarios or situations that require frequent plugging and unplugging, while providing good electrical performance and durability.

3. Transfer rate: Supports the high-speed data transfer rate of USB 2.0 (up to 480Mbps), which is sufficient for most daily file transfers and peripheral usage.

4. Portable design: Small in size and easy to carry, it is very convenient for desktop use or travel.

5. LED indicator light: Usually equipped with LED status indicator lights, it can help users intuitively understand the working status of each port and facilitate troubleshooting.

Introduction:

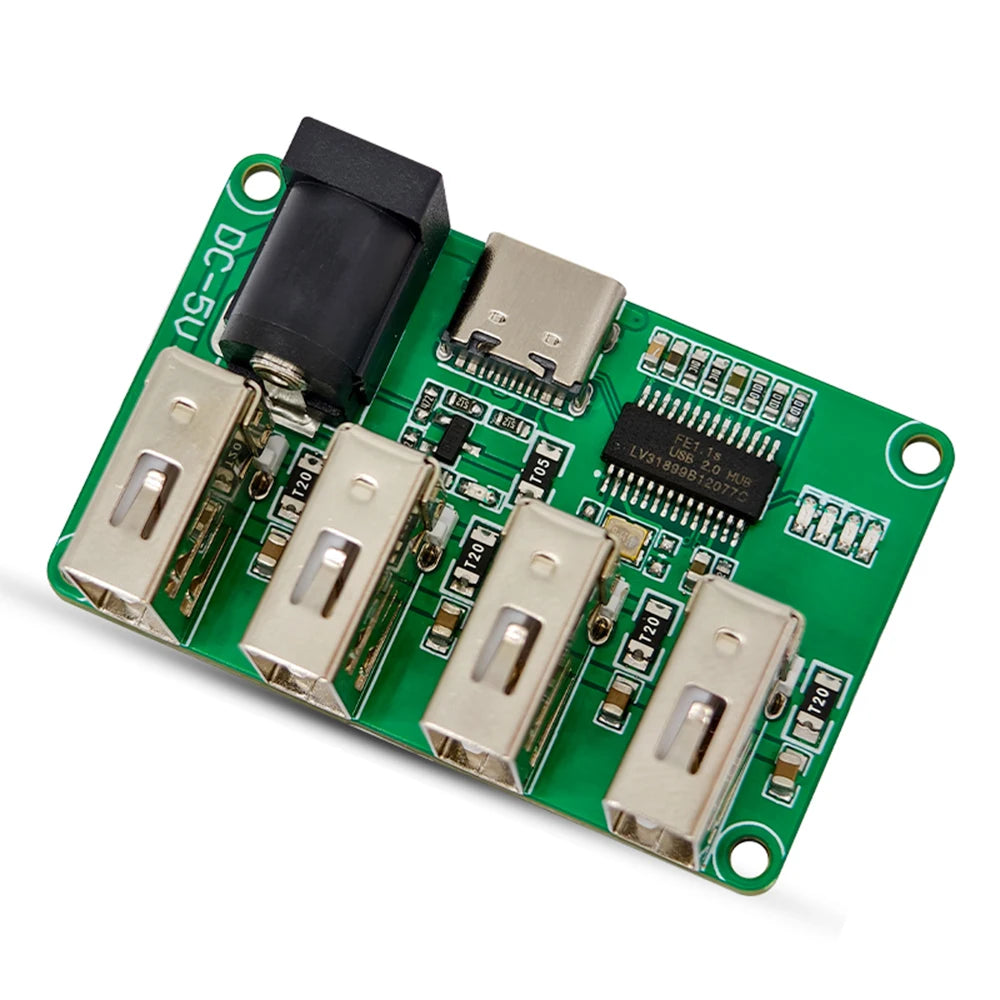

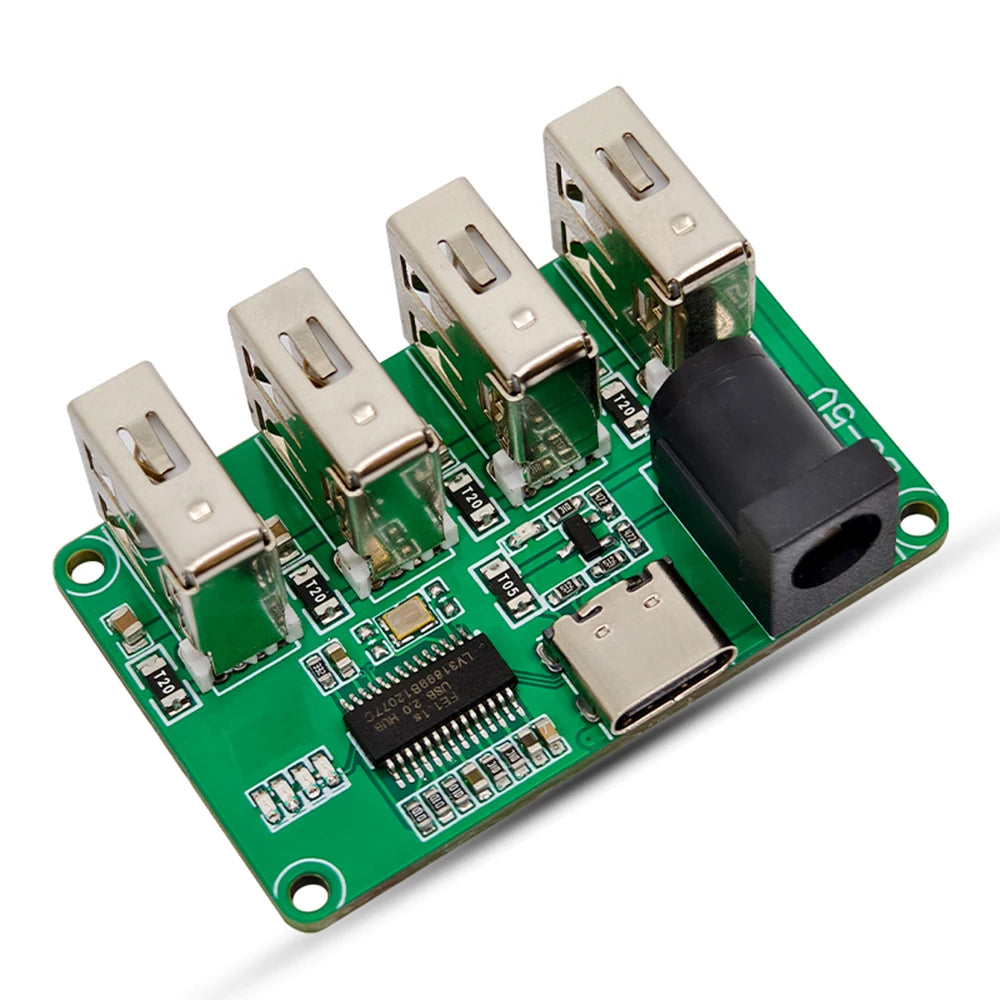

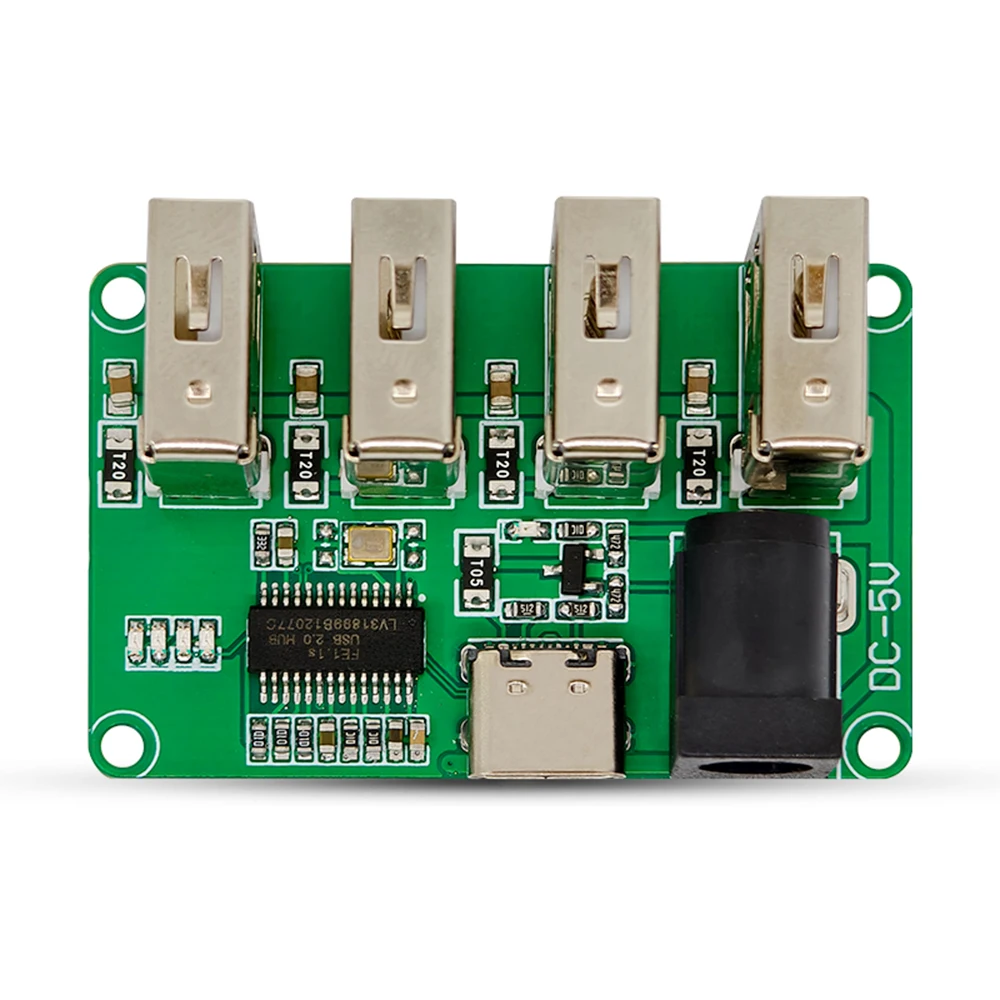

The USB 2.0 HUB_1 to 4 hub module is developed based on the FE1.1s chip, which can expand one USB interface into four USB interfaces. It has a 5V DC input, supports USB high-speed of 480Mbps, comes with LED indicator lights, an onboard 2A fuse for the input end, and an onboard 2A fuse for the output end. It has the characteristics of overcurrent protection, high performance, low power consumption, and low cost.

Parameters:

Input voltage: DC5V

Input port: 2.0mm horizontal surface mount terminal

Chip: FE1.1S chip

Indicator lights: power indicator light+4-channel USB indicator light

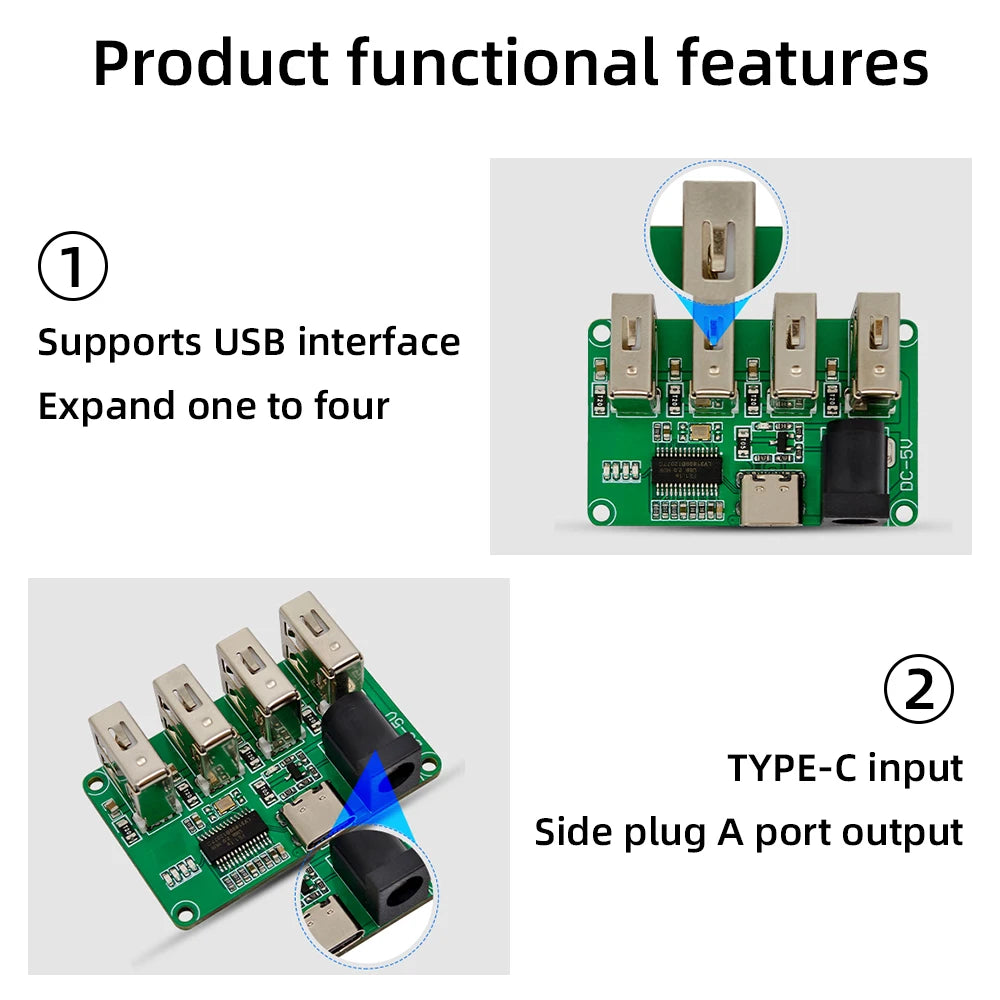

Support USB interface expansion from one to four

Supports USB 2.0 with a transfer speed of up to 480Mbps

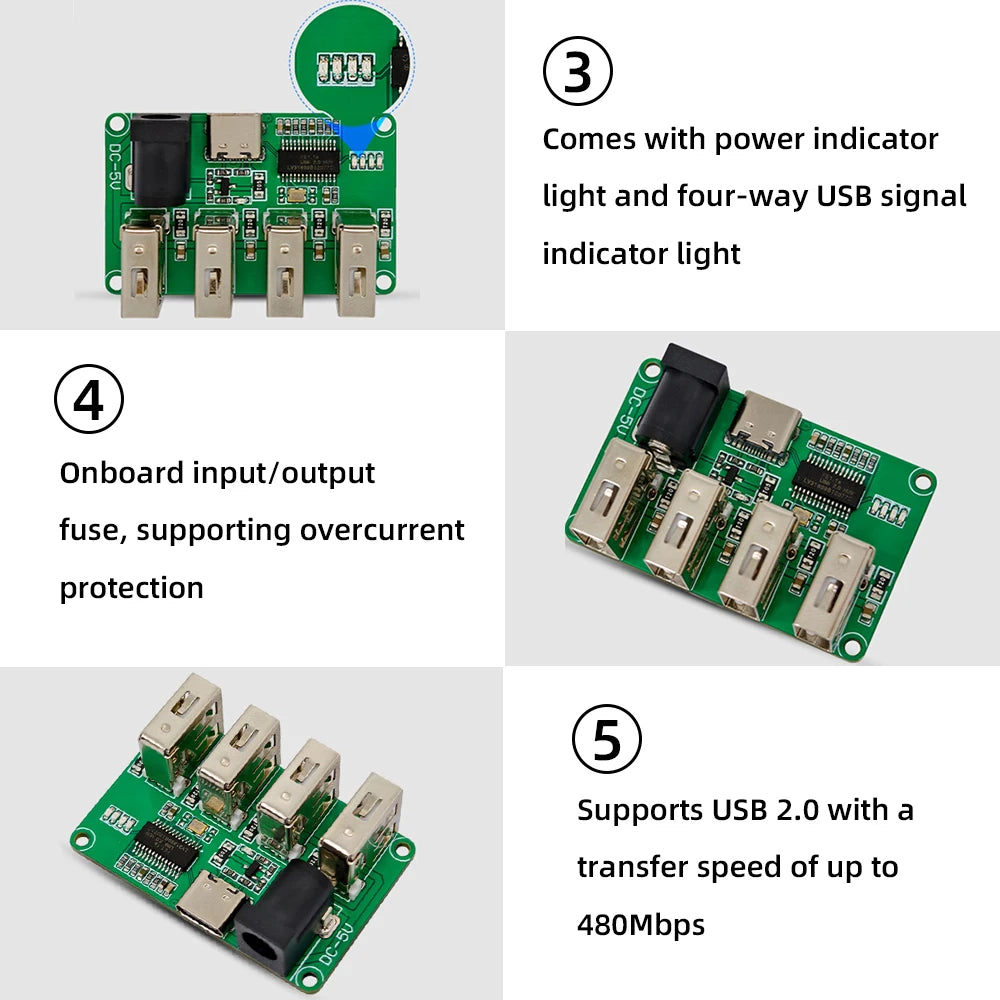

Comes with power indicator light and four-way USB signal indicator light

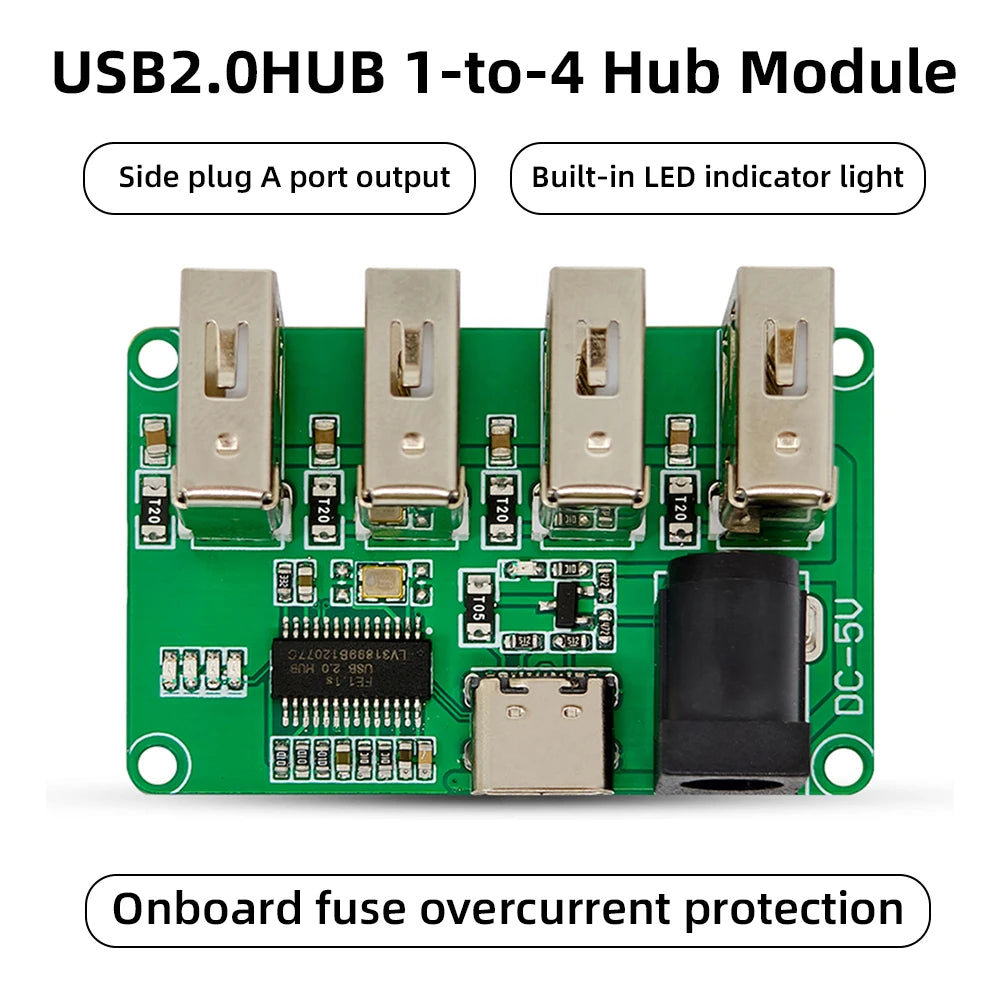

Onboard input/output fuse, supporting overcurrent protection

Fuse: The input terminal is 2A and the output terminal is 4-channel 2A fuses

Size: 30.2 * 65mm

Product application scope: keyboard, mouse, portable hard drive, card reader, USB flash drive, printer, USB fan, drawing board, writing board, PS4, USB mouse pad, etc.

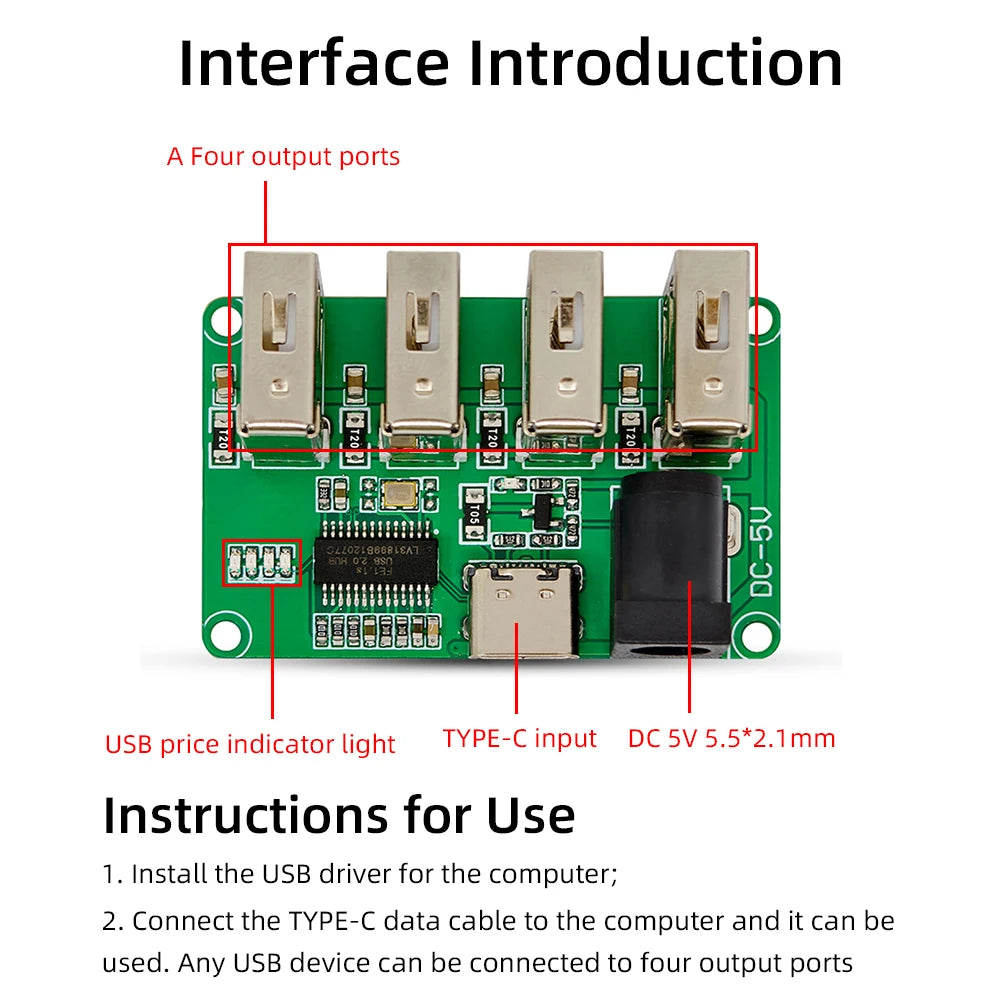

Instructions:

1. Install USB drivers on the computer;

2. Connect the input end to the computer's USB port, and connect any USB device to the output end. At this time, the LED power indicator and USB signal indicator will light up;

3. At this point, opening the USB device viewer or the built-in device manager on the computer will display information about the USB device and its corresponding COM port;

Package included:

1 x DC 5V 1 to 4 port PH2.0 Interface One To Four USB 2.0 Hub Module No Drive USB Splitter Onboard Fuse Overcurrent Protection
